Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: Submitter
Namespace: http://www.hr-xml.org/3
Type: nsA:SubmitterType
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

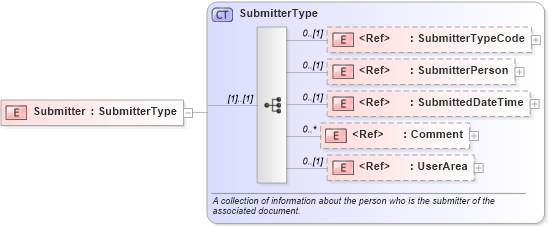

Drilldown into UserArea in schema fields_xsd Drilldown into Comment in schema fields_xsd Drilldown into SubmittedDateTime in schema fields_xsd Drilldown into SubmitterPerson in schema components_xsd Drilldown into SubmitterTypeCode in schema fields_xsd Drilldown into SubmitterType in schema components_xsdXSD Diagram of Submitter in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Submitter" type="SubmitterType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubmitterTypeCode nsA:SubmitterTypeCode 0 (1)
SubmitterPerson nsA:SubmitterPerson 0 (1)
SubmittedDateTime nsA:SubmittedDateTime 0 (1)
Comment nsA:Comment 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
