Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: SupplierPartyType
Namespace: http://www.openapplications.org/oagis/9
Type: oa:PartyBaseType
Containing Schema: Components.xsd
Abstract

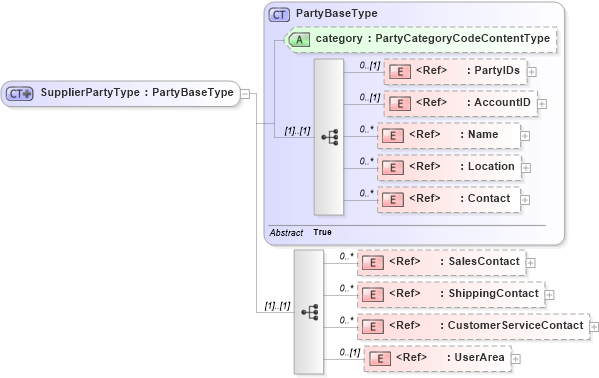

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into CustomerServiceContact in schema components_xsd1 Drilldown into ShippingContact in schema components_xsd1 Drilldown into SalesContact in schema components_xsd1 Drilldown into Contact in schema components_xsd1 Drilldown into Location in schema components_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into AccountID in schema fields_xsd1 Drilldown into PartyIDs in schema components_xsd1 Drilldown into category in schema components_xsd1 Drilldown into PartyBaseType in schema components_xsd1XSD Diagram of SupplierPartyType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SupplierPartyType">
    <xsd:complexContent>
        <xsd:extension base="PartyBaseType">
            <xsd:sequence>
                <xsd:element ref="SalesContact" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ShippingContact" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="CustomerServiceContact" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyIDs oa:PartyIDs 0 (1)
AccountID oa:AccountID 0 (1)
Name oa:Name 0 unbounded
Location oa:Location 0 unbounded
Contact oa:Contact 0 unbounded
SalesContact oa:SalesContact 0 unbounded
ShippingContact oa:ShippingContact 0 unbounded
CustomerServiceContact oa:CustomerServiceContact 0 unbounded
UserArea oa:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
category oa:category (Optional)
Collapse Derivation Tree:
Collapse References:
oa:SupplierParty
