Definition Type: Element
Name: UserAuthorization
Namespace: http://www.openapplications.org/oagis/9
Type: oa:UserAuthorizationType
Containing Schema: Components.xsd
Abstract
Documentation:
Provides the UserAuthorization credentials.

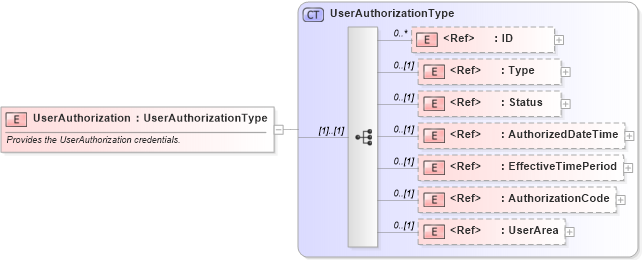

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into AuthorizationCode in schema fields_xsd1 Drilldown into EffectiveTimePeriod in schema components_xsd1 Drilldown into AuthorizedDateTime in schema fields_xsd1 Drilldown into Status in schema components_xsd1 Drilldown into Type in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into UserAuthorizationType in schema components_xsd1XSD Diagram of UserAuthorization in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="UserAuthorization" type="UserAuthorizationType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">Provides the UserAuthorization credentials.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oa:ID 0 unbounded
Type oa:Type 0 (1)
Status oa:Status 0 (1)
AuthorizedDateTime oa:AuthorizedDateTime 0 (1)
EffectiveTimePeriod oa:EffectiveTimePeriod 0 (1)
AuthorizationCode oa:AuthorizationCode 0 (1)
UserArea oa:UserArea 0 (1)
Collapse Derivation Tree:
