Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: VisaType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
ABIE Visa. Details A collection of information about a government-issued visa. A visia is permit authorizing a person to enter, stay, and/or work within a particular country.

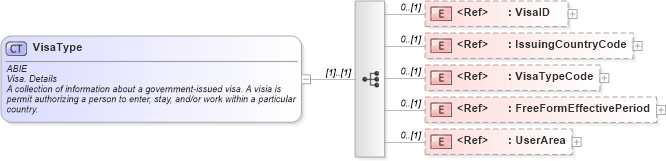

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into FreeFormEffectivePeriod in schema components_xsd Drilldown into VisaTypeCode in schema fields_xsd Drilldown into IssuingCountryCode in schema fields_xsd Drilldown into VisaID in schema fields_xsdXSD Diagram of VisaType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="VisaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">ABIE</ccts:CategoryCode>
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Visa. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">A collection of information about a government-issued visa. A visia is permit authorizing a person to enter, stay, and/or work within a particular country.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="VisaID" minOccurs="0" />
        <xsd:element ref="IssuingCountryCode" minOccurs="0" />
        <xsd:element ref="VisaTypeCode" minOccurs="0" />
        <xsd:element ref="FreeFormEffectivePeriod" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VisaID nsA:VisaID 0 (1)
IssuingCountryCode nsA:IssuingCountryCode 0 (1)
VisaTypeCode nsA:VisaTypeCode 0 (1)
FreeFormEffectivePeriod nsA:FreeFormEffectivePeriod 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:Visa
