Definition Type: ComplexType
Name: WorkEligibilityDocumentType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

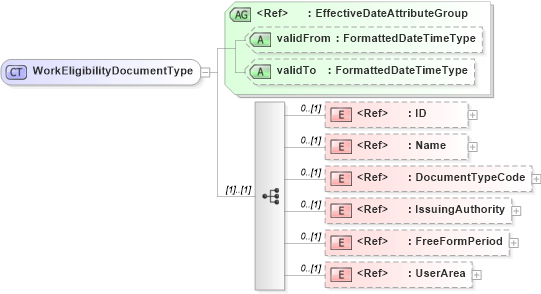

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into FreeFormPeriod in schema components_xsd Drilldown into IssuingAuthority in schema components_xsd Drilldown into DocumentTypeCode in schema fields_xsd Drilldown into Name in schema fields_xsd1 Drilldown into ID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of WorkEligibilityDocumentType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="WorkEligibilityDocumentType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="oa:Name" minOccurs="0" />
        <xsd:element ref="DocumentTypeCode" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">For example, U.S. work eligibility
					requirements involve the presentation of documents showing identity and work eligibility.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="IssuingAuthority" minOccurs="0" />
        <xsd:element ref="FreeFormPeriod" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
Name oa:Name 0 (1)
DocumentTypeCode nsA:DocumentTypeCode 0 (1)
IssuingAuthority nsA:IssuingAuthority 0 (1)
FreeFormPeriod nsA:FreeFormPeriod 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:WorkEligibilityDocument
