Definition Type: ComplexType
Name: ApplicationHistoryType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Contains a summary of activities, milestones, results, etc. carried out in the course of the recruiting and hiring process.

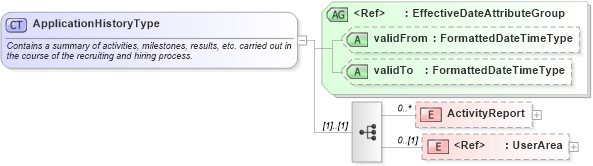

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ActivityReport in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of ApplicationHistoryType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ApplicationHistoryType">
    <xsd:annotation>
        <xsd:documentation>Contains a summary of activities, milestones, results, etc. carried out in the course of the recruiting and hiring process.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ActivityReport" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element ref="ID" minOccurs="0" />
                    <xsd:element ref="Date" minOccurs="0" />
                    <xsd:element ref="TypeCode" minOccurs="0" />
                    <xsd:element ref="SpecifiedPerson" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element ref="oa:Description" minOccurs="0" />
                    <xsd:element ref="oa:ResultCode" minOccurs="0" />
                    <xsd:element ref="UserArea" minOccurs="0" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActivityReport nsA:ActivityReport 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:ApplicationHistory
