Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ChangeSearchDocumentType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: ChangeSearchDocument.xsd
Abstract
Documentation:
Used to request a Change of a SearchDocument previously communicated to the receiving application or party. SearchDocument Defines search criteria and results to comply with U.S. Office of Federal Contracts Compliance Programs (OFCCP) regulations. Change is an "Action Verb". ActionExpression(s) represent and communicate data management instructions. Note that there are two implementation patterns: "Full Refresh" and "Delta." Under the Full Refresh pattern, the type of data management instruction (action code: add, update, delete) is ommitted since a full refresh of the noun or other defined scope is implied. Under the Delta pattern, the action code would be specified to be applied to the selected fields presented in the noun portion of the ChangeSearchDocument BOD. Choice of implementation pattern is something agreed upon by trading partners.

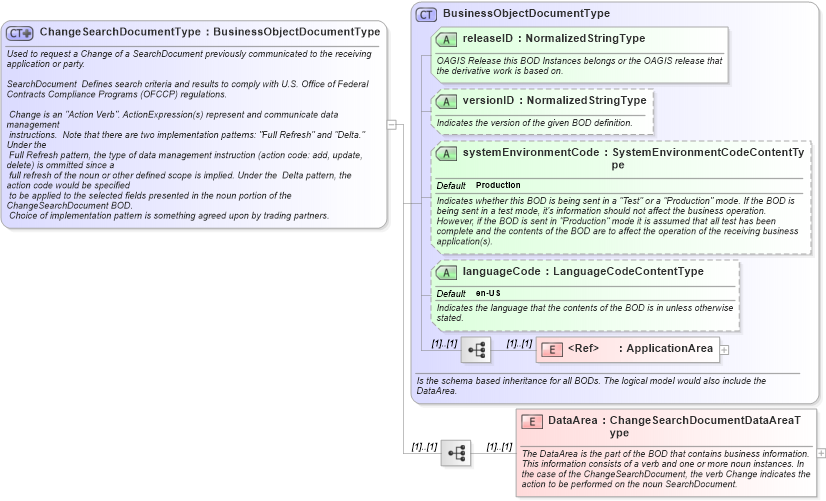

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema changesearchdocument_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of ChangeSearchDocumentType in schema changesearchdocument_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ChangeSearchDocumentType">
    <xsd:annotation>
        <xsd:documentation>
       Used to request a Change of a SearchDocument previously communicated to the receiving application or party.

      SearchDocument  Defines search criteria and results to comply with U.S. Office of Federal Contracts Compliance Programs (OFCCP) regulations.

       Change is an "Action Verb". ActionExpression(s) represent and communicate data management
       instructions.  Note that there are two implementation patterns: "Full Refresh" and "Delta." Under the
       Full Refresh pattern, the type of data management instruction (action code: add, update, delete) is ommitted since a
       full refresh of the noun or other defined scope is implied. Under the  Delta pattern, the action code would be specified
       to be applied to the selected fields presented in the noun portion of the ChangeSearchDocument BOD.
       Choice of implementation pattern is something agreed upon by trading partners.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="ChangeSearchDocumentDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. In the case of the ChangeSearchDocument, the verb Change indicates the action to be performed on the noun SearchDocument.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:ChangeSearchDocument
