Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: CriminalSpecification
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Identifies specifics relating to the detail of each criminal jurisdiction.

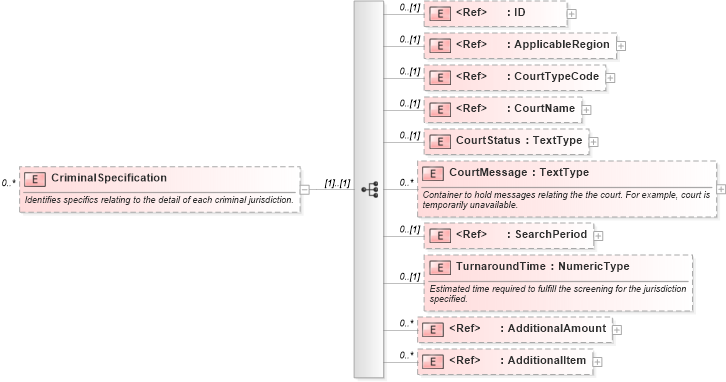

Collapse XSD Schema Diagram:
Drilldown into AdditionalItem in schema components_xsd Drilldown into AdditionalAmount in schema fields_xsd Drilldown into TurnaroundTime in schema components_xsd Drilldown into SearchPeriod in schema components_xsd Drilldown into CourtMessage in schema components_xsd Drilldown into CourtStatus in schema components_xsd Drilldown into CourtName in schema fields_xsd Drilldown into CourtTypeCode in schema fields_xsd Drilldown into ApplicableRegion in schema components_xsd Drilldown into ID in schema fields_xsdXSD Diagram of CriminalSpecification in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="CriminalSpecification" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Identifies specifics relating to the detail of each criminal jurisdiction.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="ID" minOccurs="0" />
            <xsd:element ref="ApplicableRegion" minOccurs="0" />
            <xsd:element ref="CourtTypeCode" minOccurs="0" />
            <xsd:element ref="CourtName" minOccurs="0" />
            <xsd:element name="CourtStatus" type="oa:TextType" minOccurs="0" />
            <xsd:element name="CourtMessage" type="oa:TextType" minOccurs="0" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation>Container to hold messages relating the the court. For example, court is temporarily unavailable.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element ref="SearchPeriod" minOccurs="0" />
            <xsd:element name="TurnaroundTime" type="oa:NumericType" minOccurs="0" oa:IndicatorType="oa:DurationType" xmlns:oa="http://www.openapplications.org/oagis/9">
                <xsd:annotation>
                    <xsd:documentation>Estimated time required to fulfill the screening for the jurisdiction specified.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element ref="AdditionalAmount" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
ApplicableRegion nsA:ApplicableRegion 0 (1)
CourtTypeCode nsA:CourtTypeCode 0 (1)
CourtName nsA:CourtName 0 (1)
CourtStatus nsA:CourtStatus 0 (1)
CourtMessage nsA:CourtMessage 0 unbounded
SearchPeriod nsA:SearchPeriod 0 (1)
TurnaroundTime nsA:TurnaroundTime 0 (1)
AdditionalAmount nsA:AdditionalAmount 0 unbounded
AdditionalItem nsA:AdditionalItem 0 unbounded
