Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: EmploymentEligibilityI-9Type
Namespace: http://www.hr-xml.org/3
Containing Schema: EmploymentEligibilityI-9.xsd
Abstract
Documentation:
Contains a set of information to document that each new employee (both citizen and non-citizen) hired after November 6, 1986, is authorized to work in the United States. Note that this standard would be only used within the United States.

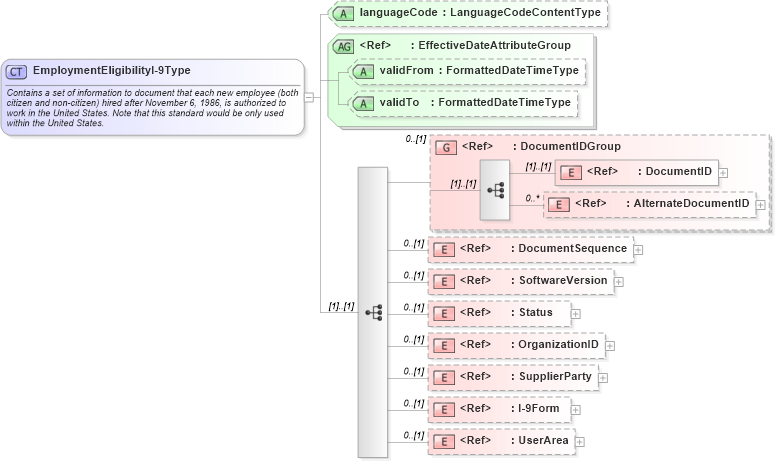

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into I-9Form in schema employmenteligibilityi-9_xsd Drilldown into SupplierParty in schema components_xsd Drilldown into OrganizationID in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into SoftwareVersion in schema components_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema employmenteligibilityi-9_xsdXSD Diagram of EmploymentEligibilityI-9Type in schema employmenteligibilityi-9_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="EmploymentEligibilityI-9Type">
    <xsd:annotation>
        <xsd:documentation>Contains a set of information to document that each new employee (both citizen and non-citizen) hired after November 6, 1986, is authorized to work in the United States. Note that this standard would be only used within the United States.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDGroup" minOccurs="0" />
        <xsd:element ref="DocumentSequence" minOccurs="0" />
        <xsd:element ref="SoftwareVersion" minOccurs="0" />
        <xsd:element ref="Status" minOccurs="0" />
        <xsd:element ref="OrganizationID" minOccurs="0" />
        <xsd:element ref="SupplierParty" minOccurs="0" />
        <xsd:element ref="I-9Form" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
SoftwareVersion nsA:SoftwareVersion 0 (1)
Status nsA:Status 0 (1)
OrganizationID nsA:OrganizationID 0 (1)
SupplierParty nsA:SupplierParty 0 (1)
I-9Form nsA:I-9Form 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:EmploymentEligibilityI-9
