Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: NewHireScreeningResultType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Contains summary information about the results of screening processes carried out during the hiring process.

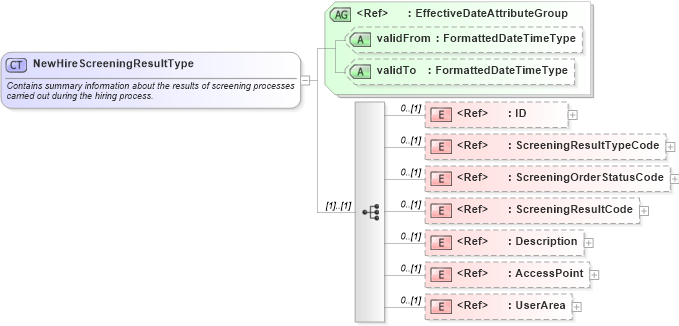

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into AccessPoint in schema components_xsd Drilldown into Description in schema fields_xsd1 Drilldown into ScreeningResultCode in schema fields_xsd Drilldown into ScreeningOrderStatusCode in schema fields_xsd Drilldown into ScreeningResultTypeCode in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of NewHireScreeningResultType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="NewHireScreeningResultType">
    <xsd:annotation>
        <xsd:documentation>Contains summary information about the results of screening processes carried out during the hiring process.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="ScreeningResultTypeCode" minOccurs="0" />
        <xsd:element ref="ScreeningOrderStatusCode" minOccurs="0" />
        <xsd:element ref="ScreeningResultCode" minOccurs="0" />
        <xsd:element ref="oa:Description" minOccurs="0" />
        <xsd:element ref="AccessPoint" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
ScreeningResultTypeCode nsA:ScreeningResultTypeCode 0 (1)
ScreeningOrderStatusCode nsA:ScreeningOrderStatusCode 0 (1)
ScreeningResultCode nsA:ScreeningResultCode 0 (1)
Description oa:Description 0 (1)
AccessPoint nsA:AccessPoint 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:NewHireScreeningResult
