Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: PhoneNumberType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Contains a set of details relating to a communications number.

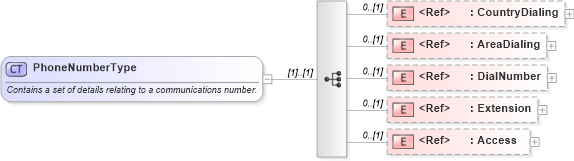

Collapse XSD Schema Diagram:
Drilldown into Access in schema fields_xsd1 Drilldown into Extension in schema fields_xsd1 Drilldown into DialNumber in schema fields_xsd1 Drilldown into AreaDialing in schema fields_xsd1 Drilldown into CountryDialing in schema fields_xsd1XSD Diagram of PhoneNumberType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PhoneNumberType">
    <xsd:annotation>
        <xsd:documentation>Contains a set of details relating to a communications number.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="oa:CountryDialing" minOccurs="0" />
        <xsd:element ref="oa:AreaDialing" minOccurs="0" />
        <xsd:element ref="oa:DialNumber" minOccurs="0" />
        <xsd:element ref="oa:Extension" minOccurs="0" />
        <xsd:element ref="oa:Access" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CountryDialing oa:CountryDialing 0 (1)
AreaDialing oa:AreaDialing 0 (1)
DialNumber oa:DialNumber 0 (1)
Extension oa:Extension 0 (1)
Access oa:Access 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:SubmitterPhoneNumber
