Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ReleaseRequirementType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Contains a set of details about compliance requirements, prerequisites, or other similar conditions that apply to the particular screening.

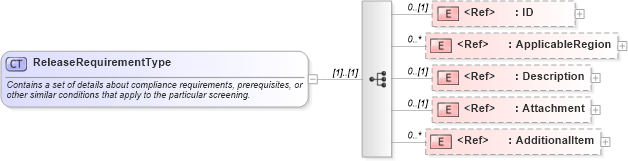

Collapse XSD Schema Diagram:
Drilldown into AdditionalItem in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into Description in schema fields_xsd1 Drilldown into ApplicableRegion in schema components_xsd Drilldown into ID in schema fields_xsdXSD Diagram of ReleaseRequirementType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ReleaseRequirementType">
    <xsd:annotation>
        <xsd:documentation>Contains a set of details about compliance requirements, prerequisites, or other similar conditions that apply to the particular screening.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="ApplicableRegion" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="oa:Description" minOccurs="0" />
        <xsd:element ref="Attachment" minOccurs="0" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
ApplicableRegion nsA:ApplicableRegion 0 unbounded
Description oa:Description 0 (1)
Attachment nsA:Attachment 0 (1)
AdditionalItem nsA:AdditionalItem 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:ReleaseRequirement
