Definition Type: Element
Name: ScreeningCatalogOrderScope
Namespace: http://www.hr-xml.org/3
Type: nsA:ScreeningCatalogOrderScopeType
Containing Schema: Components.xsd
Abstract
Documentation:
Indicator to identify the scope of work to be reported on for this Screening Catalog Order.

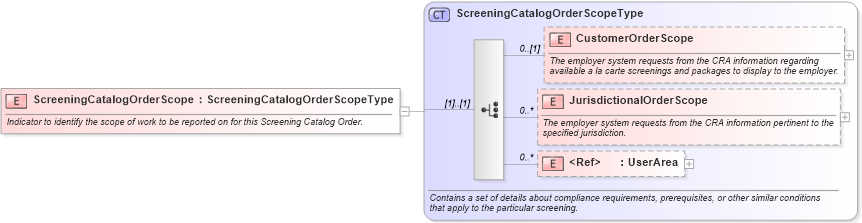

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into JurisdictionalOrderScope in schema components_xsd Drilldown into CustomerOrderScope in schema components_xsd Drilldown into ScreeningCatalogOrderScopeType in schema components_xsdXSD Diagram of ScreeningCatalogOrderScope in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ScreeningCatalogOrderScope" type="ScreeningCatalogOrderScopeType">
    <xsd:annotation>
        <xsd:documentation>Indicator to identify the scope of work to be reported on for this Screening Catalog Order.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CustomerOrderScope nsA:CustomerOrderScope 0 (1)
JurisdictionalOrderScope nsA:JurisdictionalOrderScope 0 unbounded
UserArea nsA:UserArea 0 unbounded
Collapse Derivation Tree:
