Definition Type: ComplexType
Name: SearchCriteriaType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Search Criteria. Details Contains information used as input for search or matching operations against a database or other data store. The use of this component is not restricted to any particular jurisdiction. However, within the United States, this component may be useful in solutions to comply with U.S. Office of Federal Contracts Compliance Programs (OFCCP) regulations. U.S. OFCCP require contractors to maintain a record of positions for which searches of external candidate databases were conducted, and for each search, "the substantive search criteria used." SearchCriteria

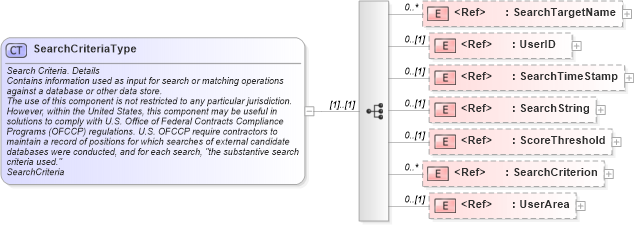

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into SearchCriterion in schema components_xsd Drilldown into ScoreThreshold in schema components_xsd Drilldown into SearchString in schema fields_xsd Drilldown into SearchTimeStamp in schema fields_xsd Drilldown into UserID in schema fields_xsd Drilldown into SearchTargetName in schema fields_xsdXSD Diagram of SearchCriteriaType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SearchCriteriaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1" />
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Search Criteria. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contains information used as input for search or matching operations against a database or other data store. </ccts:DefinitionText>
            <ccts:UsageRule xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The use of this component is not restricted to any particular jurisdiction. However, within the United States, this component may be useful in solutions to comply with U.S. Office of Federal Contracts Compliance Programs (OFCCP) regulations. U.S. OFCCP require contractors to maintain a record of positions for which searches of external candidate databases were conducted, and for each search, "the substantive search criteria used."</ccts:UsageRule>
            <ccts:BusinessTerm xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">SearchCriteria</ccts:BusinessTerm>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="SearchTargetName" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Deprecated in 3.1.  Should be handled at authentication (BOD) level. A company database, sublist, or specific industry/region from the search service. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="UserID" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">An unique identifier distinquishing the user conducting the search. For example, an employee Id for a hiring manager or recruiter. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SearchTimeStamp" minOccurs="0" />
        <xsd:element ref="SearchString" minOccurs="0" />
        <xsd:element ref="ScoreThreshold" minOccurs="0" />
        <xsd:element ref="SearchCriterion" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SearchTargetName nsA:SearchTargetName 0 unbounded
UserID nsA:UserID 0 (1)
SearchTimeStamp nsA:SearchTimeStamp 0 (1)
SearchString nsA:SearchString 0 (1)
ScoreThreshold nsA:ScoreThreshold 0 (1)
SearchCriterion nsA:SearchCriterion 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:SearchCriteria
