Definition Type: Element
Name: Section1
Namespace: http://www.hr-xml.org/3
Type: nsA:Section1Type
Containing Schema: EmploymentEligibilityI-9.xsd
Abstract
Collapse XSD Schema Diagram:

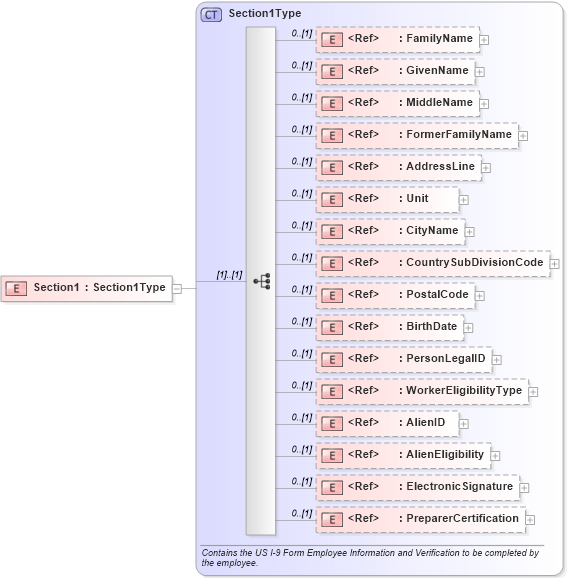

Drilldown into PreparerCertification in schema employmenteligibilityi-9_xsd Drilldown into ElectronicSignature in schema components_xsd Drilldown into AlienEligibility in schema employmenteligibilityi-9_xsd Drilldown into AlienID in schema fields_xsd Drilldown into WorkerEligibilityType in schema fields_xsd Drilldown into PersonLegalID in schema fields_xsd Drilldown into BirthDate in schema fields_xsd Drilldown into PostalCode in schema fields_xsd1 Drilldown into CountrySubDivisionCode in schema fields_xsd1 Drilldown into CityName in schema fields_xsd1 Drilldown into Unit in schema fields_xsd1 Drilldown into AddressLine in schema components_xsd1 Drilldown into FormerFamilyName in schema fields_xsd Drilldown into MiddleName in schema fields_xsd Drilldown into GivenName in schema fields_xsd1 Drilldown into FamilyName in schema fields_xsd Drilldown into Section1Type in schema employmenteligibilityi-9_xsdXSD Diagram of Section1 in schema employmenteligibilityi-9_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Section1" type="Section1Type" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FamilyName nsA:FamilyName 0 (1)
GivenName oa:GivenName 0 (1)
MiddleName nsA:MiddleName 0 (1)
FormerFamilyName nsA:FormerFamilyName 0 (1)
AddressLine oa:AddressLine 0 (1)
Unit oa:Unit 0 (1)
CityName oa:CityName 0 (1)
CountrySubDivisionCode oa:CountrySubDivisionCode 0 (1)
PostalCode oa:PostalCode 0 (1)
BirthDate nsA:BirthDate 0 (1)
PersonLegalID nsA:PersonLegalID 0 (1)
WorkerEligibilityType nsA:WorkerEligibilityType 0 (1)
AlienID nsA:AlienID 0 (1)
AlienEligibility nsA:AlienEligibility 0 (1)
ElectronicSignature nsA:ElectronicSignature 0 (1)
PreparerCertification nsA:PreparerCertification 0 (1)
Collapse Derivation Tree:
