Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ShowScreeningCatalogOrderType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: ShowScreeningCatalogOrder.xsd
Abstract
Documentation:
ShowScreeningCatalogOrder is used to send a specific piece of existing ScreeningCatalogOrder data in response to a GetScreeningCatalogOrder request. ScreeningCatalogOrder contains a set of information describing a screening service provider's catalog. The catalog contains information about "packages", which consist of one or more individual screening services that are offered for sale as a unit. A catalog also may include detail about so-called "a la carte" screenings that can be ordered a part from a package. A catalog may represent services broadly offered for sale or may be catalogs specific to a particular customer or organizational unit. Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.

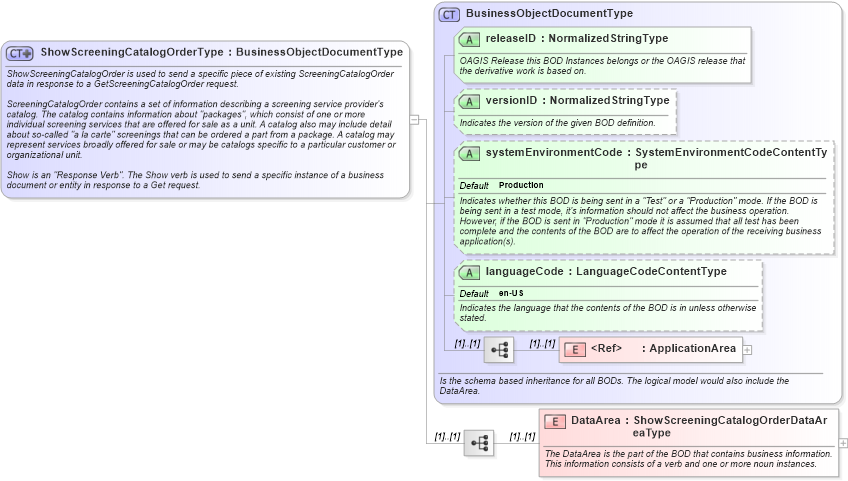

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showscreeningcatalogorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of ShowScreeningCatalogOrderType in schema showscreeningcatalogorder_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ShowScreeningCatalogOrderType">
    <xsd:annotation>
        <xsd:documentation>
        ShowScreeningCatalogOrder is used to send a specific piece of existing ScreeningCatalogOrder data in response to a GetScreeningCatalogOrder request.

       ScreeningCatalogOrder contains a set of information describing a screening service provider's catalog. The catalog contains information about "packages", which consist of one or more individual screening services that are offered for sale as a unit. A catalog also may include detail about so-called "a la carte" screenings that can be ordered a part from a package. A catalog may represent services broadly offered for sale or may be catalogs specific to a particular customer or organizational unit.

       Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="ShowScreeningCatalogOrderDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:ShowScreeningCatalogOrder
