Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: ValidationRequirement
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Identifies validation details specific to a given juristiction.

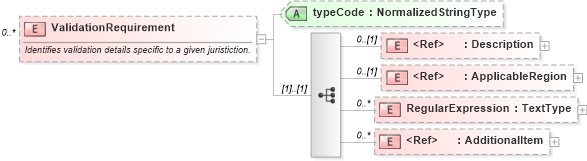

Collapse XSD Schema Diagram:
Drilldown into AdditionalItem in schema components_xsd Drilldown into RegularExpression in schema components_xsd Drilldown into ApplicableRegion in schema components_xsd Drilldown into Description in schema fields_xsd1 Drilldown into typeCode in schema components_xsdXSD Diagram of ValidationRequirement in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ValidationRequirement" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Identifies validation details specific to a given juristiction.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="oa:Description" minOccurs="0" />
            <xsd:element ref="ApplicableRegion" minOccurs="0" />
            <xsd:element name="RegularExpression" type="oa:TextType" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attribute name="typeCode" type="oa:NormalizedStringType" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description oa:Description 0 (1)
ApplicableRegion nsA:ApplicableRegion 0 (1)
RegularExpression nsA:RegularExpression 0 unbounded
AdditionalItem nsA:AdditionalItem 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
typeCode nsA:typeCode (Optional)
