Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: AcctInqRs_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_AcctInq.xsd
Abstract

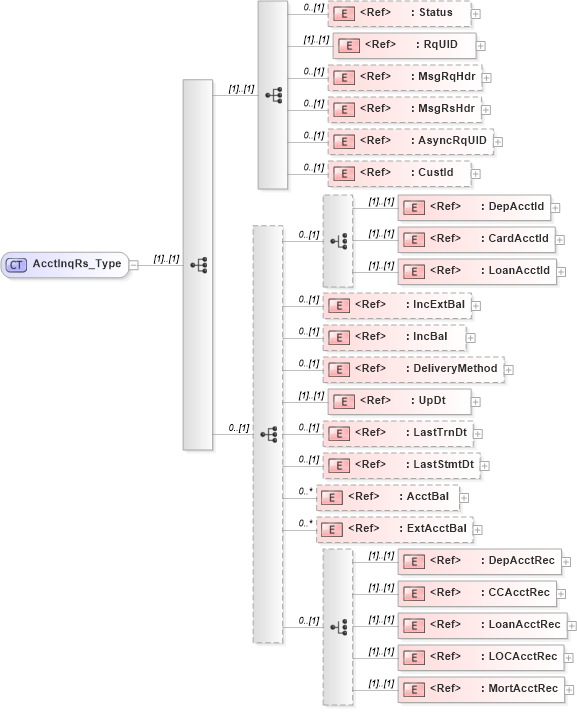

Collapse XSD Schema Diagram:
Drilldown into MortAcctRec in schema ifx170_acctlib_xsd Drilldown into LOCAcctRec in schema ifx170_acctlib_xsd Drilldown into LoanAcctRec in schema ifx170_acctlib_xsd Drilldown into CCAcctRec in schema ifx170_acctlib_xsd Drilldown into DepAcctRec in schema ifx170_acctlib_xsd Drilldown into ExtAcctBal in schema ifx170_corelib_xsd Drilldown into AcctBal in schema ifx170_corelib_xsd Drilldown into LastStmtDt in schema ifx170_corelib_xsd Drilldown into LastTrnDt in schema ifx170_corelib_xsd Drilldown into UpDt in schema ifx170_corelib_xsd Drilldown into DeliveryMethod in schema ifx170_corelib_xsd Drilldown into IncBal in schema ifx170_corelib_xsd Drilldown into IncExtBal in schema ifx170_corelib_xsd Drilldown into LoanAcctId in schema ifx170_corelib_xsd Drilldown into CardAcctId in schema ifx170_corelib_xsd Drilldown into DepAcctId in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRsHdr in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsdXSD Diagram of AcctInqRs_Type in schema ifx170_acctinq_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="AcctInqRs_Type">
    <xsd:sequence>
        <xsd:sequence>
            <xsd:element ref="Status" minOccurs="0" />
            <xsd:element ref="RqUID" />
            <xsd:element ref="MsgRqHdr" minOccurs="0" />
            <xsd:element ref="MsgRsHdr" minOccurs="0" />
            <xsd:element ref="AsyncRqUID" minOccurs="0" />
            <xsd:element ref="CustId" minOccurs="0" />
        </xsd:sequence>
        <xsd:sequence minOccurs="0">
            <xsd:choice minOccurs="0">
                <xsd:element ref="DepAcctId" />
                <xsd:element ref="CardAcctId" />
                <xsd:element ref="LoanAcctId" />
            </xsd:choice>
            <xsd:element ref="IncExtBal" minOccurs="0" />
            <xsd:element ref="IncBal" minOccurs="0" />
            <xsd:element ref="DeliveryMethod" minOccurs="0" />
            <xsd:element ref="UpDt" />
            <xsd:element ref="LastTrnDt" minOccurs="0" />
            <xsd:element ref="LastStmtDt" minOccurs="0" />
            <xsd:element ref="AcctBal" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="ExtAcctBal" minOccurs="0" maxOccurs="unbounded" />
            <xsd:choice minOccurs="0">
                <xsd:element ref="DepAcctRec" />
                <xsd:element ref="CCAcctRec" />
                <xsd:element ref="LoanAcctRec" />
                <xsd:element ref="LOCAcctRec" />
                <xsd:element ref="MortAcctRec" />
            </xsd:choice>
        </xsd:sequence>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
MsgRsHdr ifx:MsgRsHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
DepAcctId ifx:DepAcctId (1) (1)
CardAcctId ifx:CardAcctId (1) (1)
LoanAcctId ifx:LoanAcctId (1) (1)
IncExtBal ifx:IncExtBal 0 (1)
IncBal ifx:IncBal 0 (1)
DeliveryMethod ifx:DeliveryMethod 0 (1)
UpDt ifx:UpDt (1) (1)
LastTrnDt ifx:LastTrnDt 0 (1)
LastStmtDt ifx:LastStmtDt 0 (1)
AcctBal ifx:AcctBal 0 unbounded
ExtAcctBal ifx:ExtAcctBal 0 unbounded
DepAcctRec ifx:DepAcctRec (1) (1)
CCAcctRec ifx:CCAcctRec (1) (1)
LoanAcctRec ifx:LoanAcctRec (1) (1)
LOCAcctRec ifx:LOCAcctRec (1) (1)
MortAcctRec ifx:MortAcctRec (1) (1)
Collapse Derivation Tree:
Collapse References:
ifx:AcctInqRs
