Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: BankAcctInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_AcctLib.xsd
Abstract

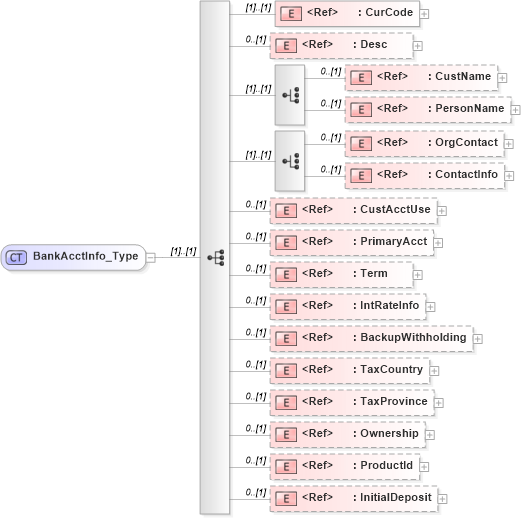

Collapse XSD Schema Diagram:
Drilldown into InitialDeposit in schema ifx170_corelib_xsd Drilldown into ProductId in schema ifx170_corelib_xsd Drilldown into Ownership in schema ifx170_corelib_xsd Drilldown into TaxProvince in schema ifx170_corelib_xsd Drilldown into TaxCountry in schema ifx170_corelib_xsd Drilldown into BackupWithholding in schema ifx170_corelib_xsd Drilldown into IntRateInfo in schema ifx170_acctlib_xsd Drilldown into Term in schema ifx170_corelib_xsd Drilldown into PrimaryAcct in schema ifx170_corelib_xsd Drilldown into CustAcctUse in schema ifx170_corelib_xsd Drilldown into ContactInfo in schema ifx170_corelib_xsd Drilldown into OrgContact in schema ifx170_corelib_xsd Drilldown into PersonName in schema ifx170_corelib_xsd Drilldown into CustName in schema ifx170_corelib_xsd Drilldown into Desc in schema ifx170_corelib_xsd Drilldown into CurCode in schema ifx170_corelib_xsdXSD Diagram of BankAcctInfo_Type in schema ifx170_acctlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="BankAcctInfo_Type">
    <xsd:sequence>
        <xsd:element ref="CurCode" />
        <xsd:element ref="Desc" minOccurs="0" />
        <xsd:choice>
            <xsd:element ref="CustName" minOccurs="0" />
            <xsd:element ref="PersonName" minOccurs="0" />
        </xsd:choice>
        <xsd:choice>
            <xsd:element ref="OrgContact" minOccurs="0" />
            <xsd:element ref="ContactInfo" minOccurs="0" />
        </xsd:choice>
        <xsd:element ref="CustAcctUse" minOccurs="0" />
        <xsd:element ref="PrimaryAcct" minOccurs="0" />
        <xsd:element ref="Term" minOccurs="0" />
        <xsd:element ref="IntRateInfo" minOccurs="0" />
        <xsd:element ref="BackupWithholding" minOccurs="0" />
        <xsd:element ref="TaxCountry" minOccurs="0" />
        <xsd:element ref="TaxProvince" minOccurs="0" />
        <xsd:element ref="Ownership" minOccurs="0" />
        <xsd:element ref="ProductId" minOccurs="0" />
        <xsd:element ref="InitialDeposit" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CurCode ifx:CurCode (1) (1)
Desc ifx:Desc 0 (1)
CustName ifx:CustName 0 (1)
PersonName ifx:PersonName 0 (1)
OrgContact ifx:OrgContact 0 (1)
ContactInfo ifx:ContactInfo 0 (1)
CustAcctUse ifx:CustAcctUse 0 (1)
PrimaryAcct ifx:PrimaryAcct 0 (1)
Term ifx:Term 0 (1)
IntRateInfo ifx:IntRateInfo 0 (1)
BackupWithholding ifx:BackupWithholding 0 (1)
TaxCountry ifx:TaxCountry 0 (1)
TaxProvince ifx:TaxProvince 0 (1)
Ownership ifx:Ownership 0 (1)
ProductId ifx:ProductId 0 (1)
InitialDeposit ifx:InitialDeposit 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:BankAcctInfo
