Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: BankAcctRec_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_AcctLib.xsd
Abstract

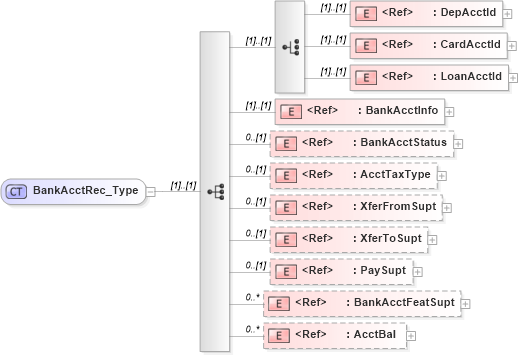

Collapse XSD Schema Diagram:
Drilldown into AcctBal in schema ifx170_corelib_xsd Drilldown into BankAcctFeatSupt in schema ifx170_acctlib_xsd Drilldown into PaySupt in schema ifx170_corelib_xsd Drilldown into XferToSupt in schema ifx170_corelib_xsd Drilldown into XferFromSupt in schema ifx170_corelib_xsd Drilldown into AcctTaxType in schema ifx170_corelib_xsd Drilldown into BankAcctStatus in schema ifx170_corelib_xsd Drilldown into BankAcctInfo in schema ifx170_acctlib_xsd Drilldown into LoanAcctId in schema ifx170_corelib_xsd Drilldown into CardAcctId in schema ifx170_corelib_xsd Drilldown into DepAcctId in schema ifx170_corelib_xsdXSD Diagram of BankAcctRec_Type in schema ifx170_acctlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="BankAcctRec_Type">
    <xsd:sequence>
        <xsd:choice>
            <xsd:element ref="DepAcctId" />
            <xsd:element ref="CardAcctId" />
            <xsd:element ref="LoanAcctId" />
        </xsd:choice>
        <xsd:element ref="BankAcctInfo" />
        <xsd:element ref="BankAcctStatus" minOccurs="0" />
        <xsd:element ref="AcctTaxType" minOccurs="0" />
        <xsd:element ref="XferFromSupt" minOccurs="0" />
        <xsd:element ref="XferToSupt" minOccurs="0" />
        <xsd:element ref="PaySupt" minOccurs="0" />
        <xsd:element ref="BankAcctFeatSupt" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AcctBal" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DepAcctId ifx:DepAcctId (1) (1)
CardAcctId ifx:CardAcctId (1) (1)
LoanAcctId ifx:LoanAcctId (1) (1)
BankAcctInfo ifx:BankAcctInfo (1) (1)
BankAcctStatus ifx:BankAcctStatus 0 (1)
AcctTaxType ifx:AcctTaxType 0 (1)
XferFromSupt ifx:XferFromSupt 0 (1)
XferToSupt ifx:XferToSupt 0 (1)
PaySupt ifx:PaySupt 0 (1)
BankAcctFeatSupt ifx:BankAcctFeatSupt 0 unbounded
AcctBal ifx:AcctBal 0 unbounded
Collapse Derivation Tree:
Collapse References:
ifx:BankAcctRec
