Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: BankInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib.xsd
Abstract

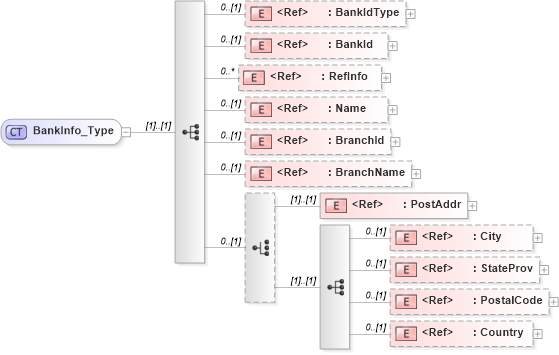

Collapse XSD Schema Diagram:
Drilldown into Country in schema ifx170_corelib_xsd Drilldown into PostalCode in schema ifx170_corelib_xsd Drilldown into StateProv in schema ifx170_corelib_xsd Drilldown into City in schema ifx170_corelib_xsd Drilldown into PostAddr in schema ifx170_corelib_xsd Drilldown into BranchName in schema ifx170_corelib_xsd Drilldown into BranchId in schema ifx170_corelib_xsd Drilldown into Name in schema ifx170_corelib_xsd Drilldown into RefInfo in schema ifx170_corelib_xsd Drilldown into BankId in schema ifx170_corelib_xsd Drilldown into BankIdType in schema ifx170_corelib_xsdXSD Diagram of BankInfo_Type in schema ifx170_corelib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="BankInfo_Type">
    <xsd:sequence>
        <xsd:element ref="BankIdType" minOccurs="0" />
        <xsd:element ref="BankId" minOccurs="0" />
        <xsd:element ref="RefInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Name" minOccurs="0" />
        <xsd:element ref="BranchId" minOccurs="0" />
        <xsd:element ref="BranchName" minOccurs="0" />
        <xsd:choice minOccurs="0">
            <xsd:element ref="PostAddr" />
            <xsd:sequence>
                <xsd:element ref="City" minOccurs="0" />
                <xsd:element ref="StateProv" minOccurs="0" />
                <xsd:element ref="PostalCode" minOccurs="0" />
                <xsd:element ref="Country" minOccurs="0" />
            </xsd:sequence>
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BankIdType ifx:BankIdType 0 (1)
BankId ifx:BankId 0 (1)
RefInfo ifx:RefInfo 0 unbounded
Name ifx:Name 0 (1)
BranchId ifx:BranchId 0 (1)
BranchName ifx:BranchName 0 (1)
PostAddr ifx:PostAddr (1) (1)
City ifx:City 0 (1)
StateProv ifx:StateProv 0 (1)
PostalCode ifx:PostalCode 0 (1)
Country ifx:Country 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:BankInfo
