Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: BankSvcChkSumDelRq_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_BankSvcChkSumDel.xsd
Abstract

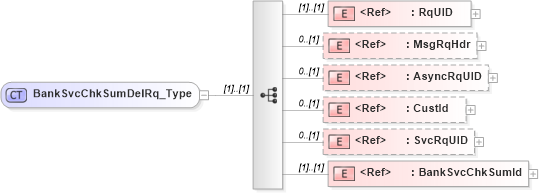

Collapse XSD Schema Diagram:
Drilldown into BankSvcChkSumId in schema ifx170_banksvcchksumlib_xsd Drilldown into SvcRqUID in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsdXSD Diagram of BankSvcChkSumDelRq_Type in schema ifx170_banksvcchksumdel_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="BankSvcChkSumDelRq_Type">
    <xsd:sequence>
        <xsd:element ref="RqUID" />
        <xsd:element ref="MsgRqHdr" minOccurs="0" />
        <xsd:element ref="AsyncRqUID" minOccurs="0" />
        <xsd:element ref="CustId" minOccurs="0" />
        <xsd:element ref="SvcRqUID" minOccurs="0" />
        <xsd:element ref="BankSvcChkSumId" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
SvcRqUID ifx:SvcRqUID 0 (1)
BankSvcChkSumId ifx:BankSvcChkSumId (1) (1)
Collapse Derivation Tree:
Collapse References:
ifx:BankSvcChkSumDelRq
