Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: BaseSvcRq_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_BaseSvc.xsd
Abstract

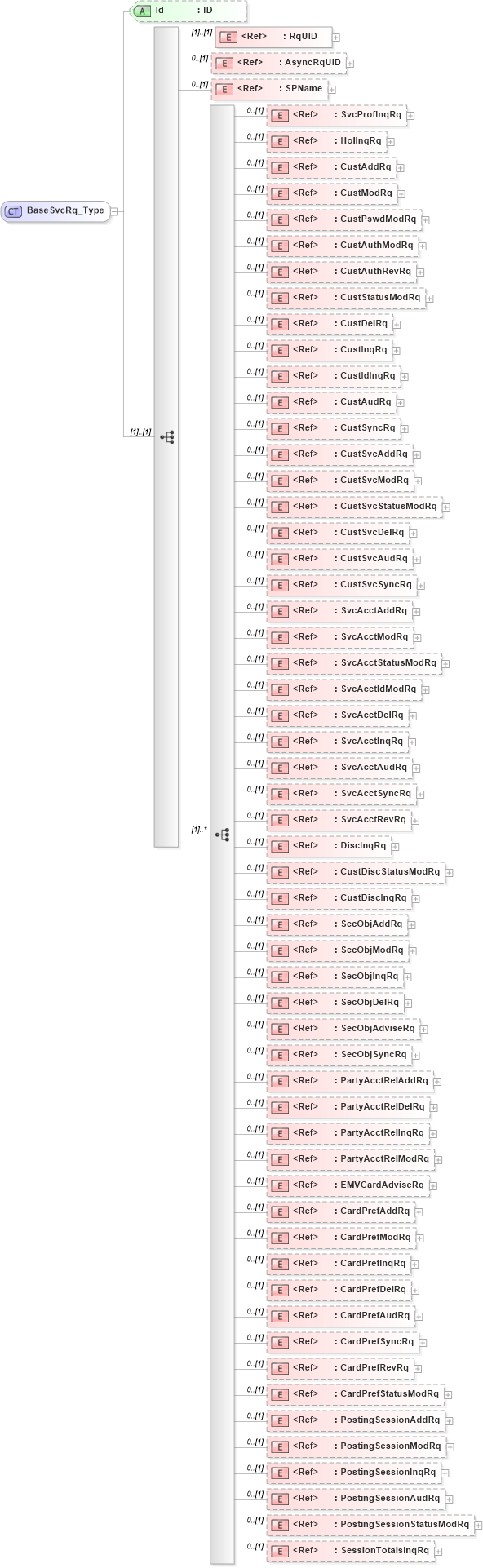

Collapse XSD Schema Diagram:
Drilldown into SessionTotalsInqRq in schema ifx170_sessiontotalsinq_xsd Drilldown into PostingSessionStatusModRq in schema ifx170_postingsessionstatusmod_xsd Drilldown into PostingSessionAudRq in schema ifx170_postingsessionaud_xsd Drilldown into PostingSessionInqRq in schema ifx170_postingsessioninq_xsd Drilldown into PostingSessionModRq in schema ifx170_postingsessionmod_xsd Drilldown into PostingSessionAddRq in schema ifx170_postingsessionadd_xsd Drilldown into CardPrefStatusModRq in schema ifx170_cardprefstatusmod_xsd Drilldown into CardPrefRevRq in schema ifx170_cardprefrev_xsd Drilldown into CardPrefSyncRq in schema ifx170_cardprefsync_xsd Drilldown into CardPrefAudRq in schema ifx170_cardprefaud_xsd Drilldown into CardPrefDelRq in schema ifx170_cardprefdel_xsd Drilldown into CardPrefInqRq in schema ifx170_cardprefinq_xsd Drilldown into CardPrefModRq in schema ifx170_cardprefmod_xsd Drilldown into CardPrefAddRq in schema ifx170_cardprefadd_xsd Drilldown into EMVCardAdviseRq in schema ifx170_emvcardadvise_xsd Drilldown into PartyAcctRelModRq in schema ifx170_partyacctrelmod_xsd Drilldown into PartyAcctRelInqRq in schema ifx170_partyacctrelinq_xsd Drilldown into PartyAcctRelDelRq in schema ifx170_partyacctreldel_xsd Drilldown into PartyAcctRelAddRq in schema ifx170_partyacctreladd_xsd Drilldown into SecObjSyncRq in schema ifx170_secobjsync_xsd Drilldown into SecObjAdviseRq in schema ifx170_secobjadvise_xsd Drilldown into SecObjDelRq in schema ifx170_secobjdel_xsd Drilldown into SecObjInqRq in schema ifx170_secobjinq_xsd Drilldown into SecObjModRq in schema ifx170_secobjmod_xsd Drilldown into SecObjAddRq in schema ifx170_secobjadd_xsd Drilldown into CustDiscInqRq in schema ifx170_custdiscinq_xsd Drilldown into CustDiscStatusModRq in schema ifx170_custdiscstatusmod_xsd Drilldown into DiscInqRq in schema ifx170_discinq_xsd Drilldown into SvcAcctRevRq in schema ifx170_svcacctrev_xsd Drilldown into SvcAcctSyncRq in schema ifx170_svcacctsync_xsd Drilldown into SvcAcctAudRq in schema ifx170_svcacctaud_xsd Drilldown into SvcAcctInqRq in schema ifx170_svcacctinq_xsd Drilldown into SvcAcctDelRq in schema ifx170_svcacctdel_xsd Drilldown into SvcAcctIdModRq in schema ifx170_svcacctidmod_xsd Drilldown into SvcAcctStatusModRq in schema ifx170_svcacctstatusmod_xsd Drilldown into SvcAcctModRq in schema ifx170_svcacctmod_xsd Drilldown into SvcAcctAddRq in schema ifx170_svcacctadd_xsd Drilldown into CustSvcSyncRq in schema ifx170_custsvcsync_xsd Drilldown into CustSvcAudRq in schema ifx170_custsvcaud_xsd Drilldown into CustSvcDelRq in schema ifx170_custsvcdel_xsd Drilldown into CustSvcStatusModRq in schema ifx170_custsvcstatusmod_xsd Drilldown into CustSvcModRq in schema ifx170_custsvcmod_xsd Drilldown into CustSvcAddRq in schema ifx170_custsvcadd_xsd Drilldown into CustSyncRq in schema ifx170_custsync_xsd Drilldown into CustAudRq in schema ifx170_custaud_xsd Drilldown into CustIdInqRq in schema ifx170_custidinq_xsd Drilldown into CustInqRq in schema ifx170_custinq_xsd Drilldown into CustDelRq in schema ifx170_custdel_xsd Drilldown into CustStatusModRq in schema ifx170_custstatusmod_xsd Drilldown into CustAuthRevRq in schema ifx170_custauthrev_xsd Drilldown into CustAuthModRq in schema ifx170_custauthmod_xsd Drilldown into CustPswdModRq in schema ifx170_custpswdmod_xsd Drilldown into CustModRq in schema ifx170_custmod_xsd Drilldown into CustAddRq in schema ifx170_custadd_xsd Drilldown into HolInqRq in schema ifx170_holinq_xsd Drilldown into SvcProfInqRq in schema ifx170_svcprofinq_xsd Drilldown into SPName in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Id in schema ifx170_basesvc_xsdXSD Diagram of BaseSvcRq_Type in schema ifx170_basesvc_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="BaseSvcRq_Type">
    <xsd:sequence>
        <xsd:element ref="RqUID" />
        <xsd:element ref="AsyncRqUID" minOccurs="0" />
        <xsd:element ref="SPName" minOccurs="0" />
        <xsd:sequence maxOccurs="unbounded">
            <xsd:element ref="SvcProfInqRq" minOccurs="0" />
            <xsd:element ref="HolInqRq" minOccurs="0" />
            <xsd:element ref="CustAddRq" minOccurs="0" />
            <xsd:element ref="CustModRq" minOccurs="0" />
            <xsd:element ref="CustPswdModRq" minOccurs="0" />
            <xsd:element ref="CustAuthModRq" minOccurs="0" />
            <xsd:element ref="CustAuthRevRq" minOccurs="0" />
            <xsd:element ref="CustStatusModRq" minOccurs="0" />
            <xsd:element ref="CustDelRq" minOccurs="0" />
            <xsd:element ref="CustInqRq" minOccurs="0" />
            <xsd:element ref="CustIdInqRq" minOccurs="0" />
            <xsd:element ref="CustAudRq" minOccurs="0" />
            <xsd:element ref="CustSyncRq" minOccurs="0" />
            <xsd:element ref="CustSvcAddRq" minOccurs="0" />
            <xsd:element ref="CustSvcModRq" minOccurs="0" />
            <xsd:element ref="CustSvcStatusModRq" minOccurs="0" />
            <xsd:element ref="CustSvcDelRq" minOccurs="0" />
            <xsd:element ref="CustSvcAudRq" minOccurs="0" />
            <xsd:element ref="CustSvcSyncRq" minOccurs="0" />
            <xsd:element ref="SvcAcctAddRq" minOccurs="0" />
            <xsd:element ref="SvcAcctModRq" minOccurs="0" />
            <xsd:element ref="SvcAcctStatusModRq" minOccurs="0" />
            <xsd:element ref="SvcAcctIdModRq" minOccurs="0" />
            <xsd:element ref="SvcAcctDelRq" minOccurs="0" />
            <xsd:element ref="SvcAcctInqRq" minOccurs="0" />
            <xsd:element ref="SvcAcctAudRq" minOccurs="0" />
            <xsd:element ref="SvcAcctSyncRq" minOccurs="0" />
            <xsd:element ref="SvcAcctRevRq" minOccurs="0" />
            <xsd:element ref="DiscInqRq" minOccurs="0" />
            <xsd:element ref="CustDiscStatusModRq" minOccurs="0" />
            <xsd:element ref="CustDiscInqRq" minOccurs="0" />
            <xsd:element ref="SecObjAddRq" minOccurs="0" />
            <xsd:element ref="SecObjModRq" minOccurs="0" />
            <xsd:element ref="SecObjInqRq" minOccurs="0" />
            <xsd:element ref="SecObjDelRq" minOccurs="0" />
            <xsd:element ref="SecObjAdviseRq" minOccurs="0" />
            <xsd:element ref="SecObjSyncRq" minOccurs="0" />
            <xsd:element ref="PartyAcctRelAddRq" minOccurs="0" />
            <xsd:element ref="PartyAcctRelDelRq" minOccurs="0" />
            <xsd:element ref="PartyAcctRelInqRq" minOccurs="0" />
            <xsd:element ref="PartyAcctRelModRq" minOccurs="0" />
            <xsd:element ref="EMVCardAdviseRq" minOccurs="0" />
            <xsd:element ref="CardPrefAddRq" minOccurs="0" />
            <xsd:element ref="CardPrefModRq" minOccurs="0" />
            <xsd:element ref="CardPrefInqRq" minOccurs="0" />
            <xsd:element ref="CardPrefDelRq" minOccurs="0" />
            <xsd:element ref="CardPrefAudRq" minOccurs="0" />
            <xsd:element ref="CardPrefSyncRq" minOccurs="0" />
            <xsd:element ref="CardPrefRevRq" minOccurs="0" />
            <xsd:element ref="CardPrefStatusModRq" minOccurs="0" />
            <xsd:element ref="PostingSessionAddRq" minOccurs="0" />
            <xsd:element ref="PostingSessionModRq" minOccurs="0" />
            <xsd:element ref="PostingSessionInqRq" minOccurs="0" />
            <xsd:element ref="PostingSessionAudRq" minOccurs="0" />
            <xsd:element ref="PostingSessionStatusModRq" minOccurs="0" />
            <xsd:element ref="SessionTotalsInqRq" minOccurs="0" />
        </xsd:sequence>
    </xsd:sequence>
    <xsd:attribute name="Id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID ifx:RqUID (1) (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
SPName ifx:SPName 0 (1)
SvcProfInqRq ifx:SvcProfInqRq 0 (1)
HolInqRq ifx:HolInqRq 0 (1)
CustAddRq ifx:CustAddRq 0 (1)
CustModRq ifx:CustModRq 0 (1)
CustPswdModRq ifx:CustPswdModRq 0 (1)
CustAuthModRq ifx:CustAuthModRq 0 (1)
CustAuthRevRq ifx:CustAuthRevRq 0 (1)
CustStatusModRq ifx:CustStatusModRq 0 (1)
CustDelRq ifx:CustDelRq 0 (1)
CustInqRq ifx:CustInqRq 0 (1)
CustIdInqRq ifx:CustIdInqRq 0 (1)
CustAudRq ifx:CustAudRq 0 (1)
CustSyncRq ifx:CustSyncRq 0 (1)
CustSvcAddRq ifx:CustSvcAddRq 0 (1)
CustSvcModRq ifx:CustSvcModRq 0 (1)
CustSvcStatusModRq ifx:CustSvcStatusModRq 0 (1)
CustSvcDelRq ifx:CustSvcDelRq 0 (1)
CustSvcAudRq ifx:CustSvcAudRq 0 (1)
CustSvcSyncRq ifx:CustSvcSyncRq 0 (1)
SvcAcctAddRq ifx:SvcAcctAddRq 0 (1)
SvcAcctModRq ifx:SvcAcctModRq 0 (1)
SvcAcctStatusModRq ifx:SvcAcctStatusModRq 0 (1)
SvcAcctIdModRq ifx:SvcAcctIdModRq 0 (1)
SvcAcctDelRq ifx:SvcAcctDelRq 0 (1)
SvcAcctInqRq ifx:SvcAcctInqRq 0 (1)
SvcAcctAudRq ifx:SvcAcctAudRq 0 (1)
SvcAcctSyncRq ifx:SvcAcctSyncRq 0 (1)
SvcAcctRevRq ifx:SvcAcctRevRq 0 (1)
DiscInqRq ifx:DiscInqRq 0 (1)
CustDiscStatusModRq ifx:CustDiscStatusModRq 0 (1)
CustDiscInqRq ifx:CustDiscInqRq 0 (1)
SecObjAddRq ifx:SecObjAddRq 0 (1)
SecObjModRq ifx:SecObjModRq 0 (1)
SecObjInqRq ifx:SecObjInqRq 0 (1)
SecObjDelRq ifx:SecObjDelRq 0 (1)
SecObjAdviseRq ifx:SecObjAdviseRq 0 (1)
SecObjSyncRq ifx:SecObjSyncRq 0 (1)
PartyAcctRelAddRq ifx:PartyAcctRelAddRq 0 (1)
PartyAcctRelDelRq ifx:PartyAcctRelDelRq 0 (1)
PartyAcctRelInqRq ifx:PartyAcctRelInqRq 0 (1)
PartyAcctRelModRq ifx:PartyAcctRelModRq 0 (1)
EMVCardAdviseRq ifx:EMVCardAdviseRq 0 (1)
CardPrefAddRq ifx:CardPrefAddRq 0 (1)
CardPrefModRq ifx:CardPrefModRq 0 (1)
CardPrefInqRq ifx:CardPrefInqRq 0 (1)
CardPrefDelRq ifx:CardPrefDelRq 0 (1)
CardPrefAudRq ifx:CardPrefAudRq 0 (1)
CardPrefSyncRq ifx:CardPrefSyncRq 0 (1)
CardPrefRevRq ifx:CardPrefRevRq 0 (1)
CardPrefStatusModRq ifx:CardPrefStatusModRq 0 (1)
PostingSessionAddRq ifx:PostingSessionAddRq 0 (1)
PostingSessionModRq ifx:PostingSessionModRq 0 (1)
PostingSessionInqRq ifx:PostingSessionInqRq 0 (1)
PostingSessionAudRq ifx:PostingSessionAudRq 0 (1)
PostingSessionStatusModRq ifx:PostingSessionStatusModRq 0 (1)
SessionTotalsInqRq ifx:SessionTotalsInqRq 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Id ifx:Id (Optional)
Collapse Derivation Tree:
Collapse References:
ifx:BaseSvcRq
