Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: BillerInqRq_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_BillerInq.xsd
Abstract
Collapse XSD Schema Diagram:

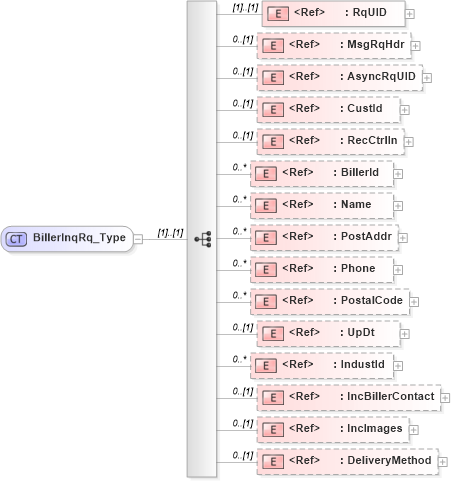

Drilldown into DeliveryMethod in schema ifx170_corelib_xsd Drilldown into IncImages in schema ifx170_corelib_xsd Drilldown into IncBillerContact in schema ifx170_corelib_xsd Drilldown into IndustId in schema ifx170_corelib_xsd Drilldown into UpDt in schema ifx170_corelib_xsd Drilldown into PostalCode in schema ifx170_corelib_xsd Drilldown into Phone in schema ifx170_corelib_xsd Drilldown into PostAddr in schema ifx170_corelib_xsd Drilldown into Name in schema ifx170_corelib_xsd Drilldown into BillerId in schema ifx170_corelib_xsd Drilldown into RecCtrlIn in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsdXSD Diagram of BillerInqRq_Type in schema ifx170_billerinq_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="BillerInqRq_Type">
    <xsd:sequence>
        <xsd:element ref="RqUID" />
        <xsd:element ref="MsgRqHdr" minOccurs="0" />
        <xsd:element ref="AsyncRqUID" minOccurs="0" />
        <xsd:element ref="CustId" minOccurs="0" />
        <xsd:element ref="RecCtrlIn" minOccurs="0" />
        <xsd:element ref="BillerId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Name" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PostAddr" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Phone" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PostalCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UpDt" minOccurs="0" />
        <xsd:element ref="IndustId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="IncBillerContact" minOccurs="0" />
        <xsd:element ref="IncImages" minOccurs="0" />
        <xsd:element ref="DeliveryMethod" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
RecCtrlIn ifx:RecCtrlIn 0 (1)
BillerId ifx:BillerId 0 unbounded
Name ifx:Name 0 unbounded
PostAddr ifx:PostAddr 0 unbounded
Phone ifx:Phone 0 unbounded
PostalCode ifx:PostalCode 0 unbounded
UpDt ifx:UpDt 0 (1)
IndustId ifx:IndustId 0 unbounded
IncBillerContact ifx:IncBillerContact 0 (1)
IncImages ifx:IncImages 0 (1)
DeliveryMethod ifx:DeliveryMethod 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:BillerInqRq
