Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: BillInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_BillLib.xsd
Abstract

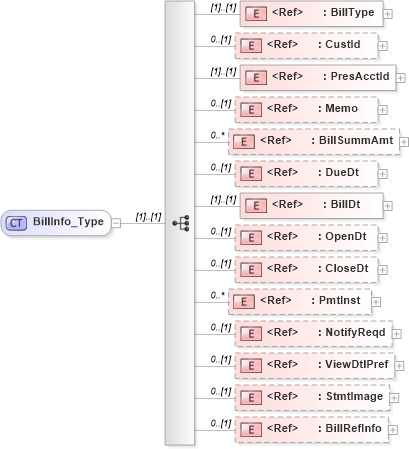

Collapse XSD Schema Diagram:
Drilldown into BillRefInfo in schema ifx170_corelib_xsd Drilldown into StmtImage in schema ifx170_corelib_xsd Drilldown into ViewDtlPref in schema ifx170_corelib_xsd Drilldown into NotifyReqd in schema ifx170_corelib_xsd Drilldown into PmtInst in schema ifx170_corelib_xsd Drilldown into CloseDt in schema ifx170_corelib_xsd Drilldown into OpenDt in schema ifx170_corelib_xsd Drilldown into BillDt in schema ifx170_corelib_xsd Drilldown into DueDt in schema ifx170_corelib_xsd Drilldown into BillSummAmt in schema ifx170_corelib_xsd Drilldown into Memo in schema ifx170_corelib_xsd Drilldown into PresAcctId in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into BillType in schema ifx170_corelib_xsdXSD Diagram of BillInfo_Type in schema ifx170_billlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="BillInfo_Type">
    <xsd:sequence>
        <xsd:element ref="BillType" />
        <xsd:element ref="CustId" minOccurs="0" />
        <xsd:element ref="PresAcctId" />
        <xsd:element ref="Memo" minOccurs="0" />
        <xsd:element ref="BillSummAmt" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DueDt" minOccurs="0" />
        <xsd:element ref="BillDt" />
        <xsd:element ref="OpenDt" minOccurs="0" />
        <xsd:element ref="CloseDt" minOccurs="0" />
        <xsd:element ref="PmtInst" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="NotifyReqd" minOccurs="0" />
        <xsd:element ref="ViewDtlPref" minOccurs="0" />
        <xsd:element ref="StmtImage" minOccurs="0" />
        <xsd:element ref="BillRefInfo" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BillType ifx:BillType (1) (1)
CustId ifx:CustId 0 (1)
PresAcctId ifx:PresAcctId (1) (1)
Memo ifx:Memo 0 (1)
BillSummAmt ifx:BillSummAmt 0 unbounded
DueDt ifx:DueDt 0 (1)
BillDt ifx:BillDt (1) (1)
OpenDt ifx:OpenDt 0 (1)
CloseDt ifx:CloseDt 0 (1)
PmtInst ifx:PmtInst 0 unbounded
NotifyReqd ifx:NotifyReqd 0 (1)
ViewDtlPref ifx:ViewDtlPref 0 (1)
StmtImage ifx:StmtImage 0 (1)
BillRefInfo ifx:BillRefInfo 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:BillInfo
