Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: BillInqRs_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_BillInq.xsd
Abstract

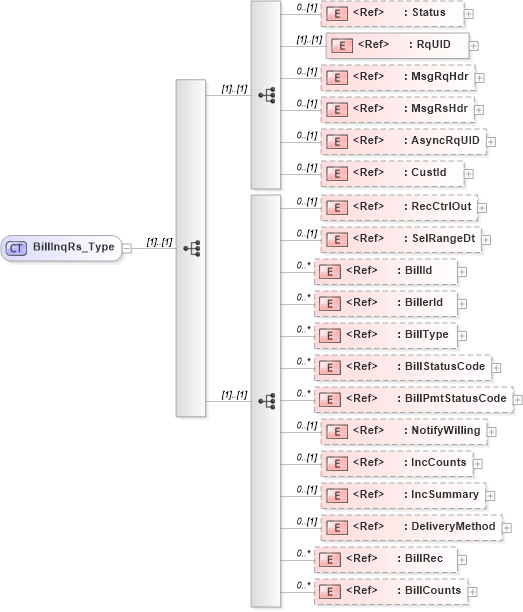

Collapse XSD Schema Diagram:
Drilldown into BillCounts in schema ifx170_corelib_xsd Drilldown into BillRec in schema ifx170_billlib_xsd Drilldown into DeliveryMethod in schema ifx170_corelib_xsd Drilldown into IncSummary in schema ifx170_corelib_xsd Drilldown into IncCounts in schema ifx170_corelib_xsd Drilldown into NotifyWilling in schema ifx170_corelib_xsd Drilldown into BillPmtStatusCode in schema ifx170_corelib_xsd Drilldown into BillStatusCode in schema ifx170_corelib_xsd Drilldown into BillType in schema ifx170_corelib_xsd Drilldown into BillerId in schema ifx170_corelib_xsd Drilldown into BillId in schema ifx170_corelib_xsd Drilldown into SelRangeDt in schema ifx170_corelib_xsd Drilldown into RecCtrlOut in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRsHdr in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsdXSD Diagram of BillInqRs_Type in schema ifx170_billinq_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="BillInqRs_Type">
    <xsd:sequence>
        <xsd:sequence>
            <xsd:element ref="Status" minOccurs="0" />
            <xsd:element ref="RqUID" />
            <xsd:element ref="MsgRqHdr" minOccurs="0" />
            <xsd:element ref="MsgRsHdr" minOccurs="0" />
            <xsd:element ref="AsyncRqUID" minOccurs="0" />
            <xsd:element ref="CustId" minOccurs="0" />
        </xsd:sequence>
        <xsd:sequence>
            <xsd:element ref="RecCtrlOut" minOccurs="0" />
            <xsd:element ref="SelRangeDt" minOccurs="0" />
            <xsd:element ref="BillId" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="BillerId" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="BillType" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="BillStatusCode" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="BillPmtStatusCode" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="NotifyWilling" minOccurs="0" />
            <xsd:element ref="IncCounts" minOccurs="0" />
            <xsd:element ref="IncSummary" minOccurs="0" />
            <xsd:element ref="DeliveryMethod" minOccurs="0" />
            <xsd:element ref="BillRec" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="BillCounts" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
MsgRsHdr ifx:MsgRsHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
RecCtrlOut ifx:RecCtrlOut 0 (1)
SelRangeDt ifx:SelRangeDt 0 (1)
BillId ifx:BillId 0 unbounded
BillerId ifx:BillerId 0 unbounded
BillType ifx:BillType 0 unbounded
BillStatusCode ifx:BillStatusCode 0 unbounded
BillPmtStatusCode ifx:BillPmtStatusCode 0 unbounded
NotifyWilling ifx:NotifyWilling 0 (1)
IncCounts ifx:IncCounts 0 (1)
IncSummary ifx:IncSummary 0 (1)
DeliveryMethod ifx:DeliveryMethod 0 (1)
BillRec ifx:BillRec 0 unbounded
BillCounts ifx:BillCounts 0 unbounded
Collapse Derivation Tree:
Collapse References:
ifx:BillInqRs
