Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: BillSummAmt_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib No Plus.xsd
Abstract
Collapse XSD Schema Diagram:

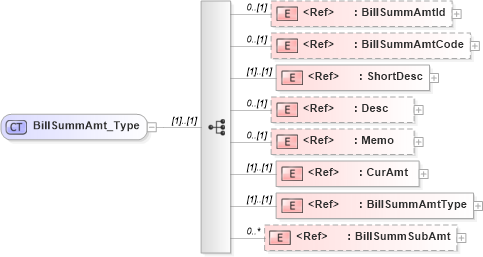

Drilldown into BillSummSubAmt in schema ifx170_corelib no plus_xsd Drilldown into BillSummAmtType in schema ifx170_corelib no plus_xsd Drilldown into CurAmt in schema ifx170_corelib no plus_xsd Drilldown into Memo in schema ifx170_corelib no plus_xsd Drilldown into Desc in schema ifx170_corelib no plus_xsd Drilldown into ShortDesc in schema ifx170_corelib no plus_xsd Drilldown into BillSummAmtCode in schema ifx170_corelib no plus_xsd Drilldown into BillSummAmtId in schema ifx170_corelib no plus_xsdXSD Diagram of BillSummAmt_Type in schema ifx170_corelib no plus_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="BillSummAmt_Type">
    <xsd:sequence>
        <xsd:element ref="BillSummAmtId" minOccurs="0" />
        <xsd:element ref="BillSummAmtCode" minOccurs="0" />
        <xsd:element ref="ShortDesc" />
        <xsd:element ref="Desc" minOccurs="0" />
        <xsd:element ref="Memo" minOccurs="0" />
        <xsd:element ref="CurAmt" />
        <xsd:element ref="BillSummAmtType" />
        <xsd:element ref="BillSummSubAmt" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BillSummAmtId ifx:BillSummAmtId 0 (1)
BillSummAmtCode ifx:BillSummAmtCode 0 (1)
ShortDesc ifx:ShortDesc (1) (1)
Desc ifx:Desc 0 (1)
Memo ifx:Memo 0 (1)
CurAmt ifx:CurAmt (1) (1)
BillSummAmtType ifx:BillSummAmtType (1) (1)
BillSummSubAmt ifx:BillSummSubAmt 0 unbounded
Collapse Derivation Tree:
Collapse References:
ifx:BillSummAmt
