Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: CardAcctId_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib.xsd
Abstract

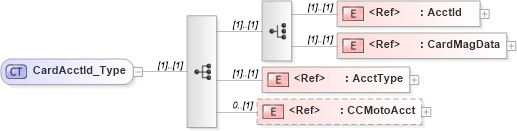

Collapse XSD Schema Diagram:
Drilldown into CCMotoAcct in schema ifx170_corelib_xsd Drilldown into AcctType in schema ifx170_corelib_xsd Drilldown into CardMagData in schema ifx170_corelib_xsd Drilldown into AcctId in schema ifx170_corelib_xsdXSD Diagram of CardAcctId_Type in schema ifx170_corelib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="CardAcctId_Type">
    <xsd:sequence>
        <xsd:choice>
            <xsd:element ref="AcctId" />
            <xsd:element ref="CardMagData" />
        </xsd:choice>
        <xsd:element ref="AcctType" />
        <xsd:element ref="CCMotoAcct" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AcctId ifx:AcctId (1) (1)
CardMagData ifx:CardMagData (1) (1)
AcctType ifx:AcctType (1) (1)
CCMotoAcct ifx:CCMotoAcct 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:CardAcctId, ifx:CardAcctIdFrom, ifx:CardAcctIdTo
