Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: CardLogicalData_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib.xsd
Abstract
Collapse XSD Schema Diagram:

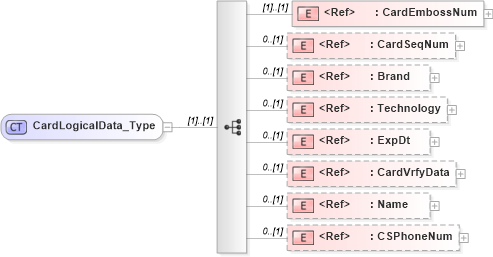

Drilldown into CSPhoneNum in schema ifx170_corelib_xsd Drilldown into Name in schema ifx170_corelib_xsd Drilldown into CardVrfyData in schema ifx170_corelib_xsd Drilldown into ExpDt in schema ifx170_corelib_xsd Drilldown into Technology in schema ifx170_corelib_xsd Drilldown into Brand in schema ifx170_corelib_xsd Drilldown into CardSeqNum in schema ifx170_corelib_xsd Drilldown into CardEmbossNum in schema ifx170_corelib_xsdXSD Diagram of CardLogicalData_Type in schema ifx170_corelib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="CardLogicalData_Type">
    <xsd:sequence>
        <xsd:element ref="CardEmbossNum" />
        <xsd:element ref="CardSeqNum" minOccurs="0" />
        <xsd:element ref="Brand" minOccurs="0" />
        <xsd:element ref="Technology" minOccurs="0" />
        <xsd:element ref="ExpDt" minOccurs="0" />
        <xsd:element ref="CardVrfyData" minOccurs="0" />
        <xsd:element ref="Name" minOccurs="0" />
        <xsd:element ref="CSPhoneNum" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CardEmbossNum ifx:CardEmbossNum (1) (1)
CardSeqNum ifx:CardSeqNum 0 (1)
Brand ifx:Brand 0 (1)
Technology ifx:Technology 0 (1)
ExpDt ifx:ExpDt 0 (1)
CardVrfyData ifx:CardVrfyData 0 (1)
Name ifx:Name 0 (1)
CSPhoneNum ifx:CSPhoneNum 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:CardLogicalData
