Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: ChkInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib.xsd
Abstract
Collapse XSD Schema Diagram:

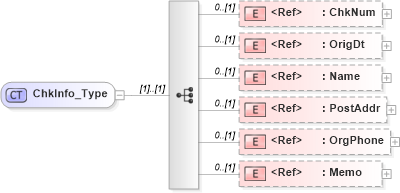

Drilldown into Memo in schema ifx170_corelib_xsd Drilldown into OrgPhone in schema ifx170_corelib_xsd Drilldown into PostAddr in schema ifx170_corelib_xsd Drilldown into Name in schema ifx170_corelib_xsd Drilldown into OrigDt in schema ifx170_corelib_xsd Drilldown into ChkNum in schema ifx170_corelib_xsdXSD Diagram of ChkInfo_Type in schema ifx170_corelib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="ChkInfo_Type">
    <xsd:sequence>
        <xsd:element ref="ChkNum" minOccurs="0" />
        <xsd:element ref="OrigDt" minOccurs="0" />
        <xsd:element ref="Name" minOccurs="0" />
        <xsd:element ref="PostAddr" minOccurs="0" />
        <xsd:element ref="OrgPhone" minOccurs="0" />
        <xsd:element ref="Memo" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ChkNum ifx:ChkNum 0 (1)
OrigDt ifx:OrigDt 0 (1)
Name ifx:Name 0 (1)
PostAddr ifx:PostAddr 0 (1)
OrgPhone ifx:OrgPhone 0 (1)
Memo ifx:Memo 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:ChkInfo
