Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: ChkIssueInqRs_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_ChkIssueInq.xsd
Abstract

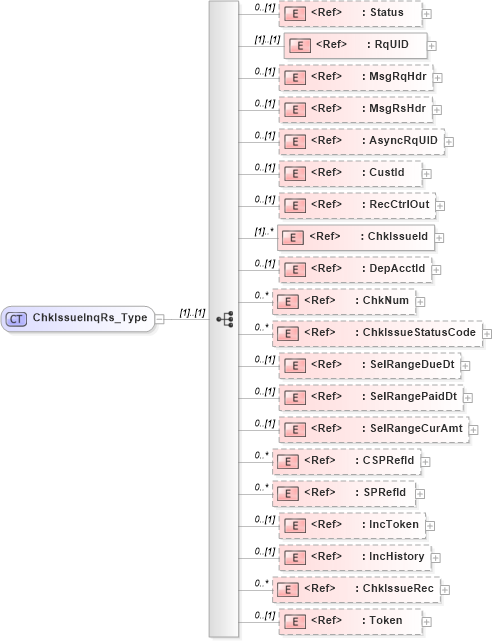

Collapse XSD Schema Diagram:
Drilldown into Token in schema ifx170_corelib_xsd Drilldown into ChkIssueRec in schema ifx170_chklib_xsd Drilldown into IncHistory in schema ifx170_corelib_xsd Drilldown into IncToken in schema ifx170_corelib_xsd Drilldown into SPRefId in schema ifx170_corelib_xsd Drilldown into CSPRefId in schema ifx170_corelib_xsd Drilldown into SelRangeCurAmt in schema ifx170_corelib_xsd Drilldown into SelRangePaidDt in schema ifx170_corelib_xsd Drilldown into SelRangeDueDt in schema ifx170_corelib_xsd Drilldown into ChkIssueStatusCode in schema ifx170_chklib_xsd Drilldown into ChkNum in schema ifx170_corelib_xsd Drilldown into DepAcctId in schema ifx170_corelib_xsd Drilldown into ChkIssueId in schema ifx170_corelib_xsd Drilldown into RecCtrlOut in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRsHdr in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsdXSD Diagram of ChkIssueInqRs_Type in schema ifx170_chkissueinq_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="ChkIssueInqRs_Type">
    <xsd:sequence>
        <xsd:element ref="Status" minOccurs="0" />
        <xsd:element ref="RqUID" />
        <xsd:element ref="MsgRqHdr" minOccurs="0" />
        <xsd:element ref="MsgRsHdr" minOccurs="0" />
        <xsd:element ref="AsyncRqUID" minOccurs="0" />
        <xsd:element ref="CustId" minOccurs="0" />
        <xsd:element ref="RecCtrlOut" minOccurs="0" />
        <xsd:element ref="ChkIssueId" maxOccurs="unbounded" />
        <xsd:element ref="DepAcctId" minOccurs="0" />
        <xsd:element ref="ChkNum" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ChkIssueStatusCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SelRangeDueDt" minOccurs="0" />
        <xsd:element ref="SelRangePaidDt" minOccurs="0" />
        <xsd:element ref="SelRangeCurAmt" minOccurs="0" />
        <xsd:element ref="CSPRefId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SPRefId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="IncToken" minOccurs="0" />
        <xsd:element ref="IncHistory" minOccurs="0" />
        <xsd:element ref="ChkIssueRec" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Token" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
MsgRsHdr ifx:MsgRsHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
RecCtrlOut ifx:RecCtrlOut 0 (1)
ChkIssueId ifx:ChkIssueId (1) unbounded
DepAcctId ifx:DepAcctId 0 (1)
ChkNum ifx:ChkNum 0 unbounded
ChkIssueStatusCode ifx:ChkIssueStatusCode 0 unbounded
SelRangeDueDt ifx:SelRangeDueDt 0 (1)
SelRangePaidDt ifx:SelRangePaidDt 0 (1)
SelRangeCurAmt ifx:SelRangeCurAmt 0 (1)
CSPRefId ifx:CSPRefId 0 unbounded
SPRefId ifx:SPRefId 0 unbounded
IncToken ifx:IncToken 0 (1)
IncHistory ifx:IncHistory 0 (1)
ChkIssueRec ifx:ChkIssueRec 0 unbounded
Token ifx:Token 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:ChkIssueInqRs
