Documentation for Interactive Financial eXchange (IFX)
Definition Type: Element
Name: ChqInstr
Namespace: urn:swift:xsd:$pain.001.001.01
Type: pain001:Cheque2
Containing Schema: $pain.001.001.01.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

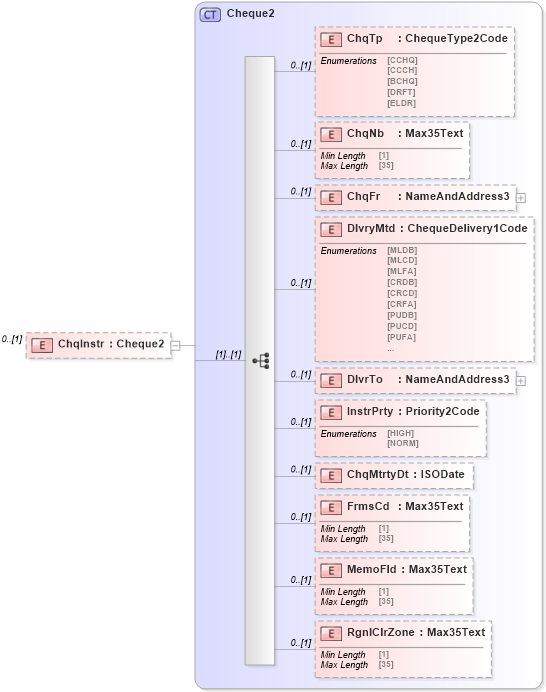

Drilldown into RgnlClrZone in schema $pain_001_001_01_xsd Drilldown into MemoFld in schema $pain_001_001_01_xsd Drilldown into FrmsCd in schema $pain_001_001_01_xsd Drilldown into ChqMtrtyDt in schema $pain_001_001_01_xsd Drilldown into InstrPrty in schema $pain_001_001_01_xsd Drilldown into DlvrTo in schema $pain_001_001_01_xsd Drilldown into DlvryMtd in schema $pain_001_001_01_xsd Drilldown into ChqFr in schema $pain_001_001_01_xsd Drilldown into ChqNb in schema $pain_001_001_01_xsd Drilldown into ChqTp in schema $pain_001_001_01_xsd Drilldown into Cheque2 in schema $pain_001_001_01_xsdXSD Diagram of ChqInstr in schema $pain_001_001_01_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xs:element name="ChqInstr" type="Cheque2" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ChqTp pain001:ChqTp 0 (1)
ChqNb pain001:ChqNb 0 (1)
ChqFr pain001:ChqFr 0 (1)
DlvryMtd pain001:DlvryMtd 0 (1)
DlvrTo pain001:DlvrTo 0 (1)
InstrPrty pain001:InstrPrty 0 (1)
ChqMtrtyDt pain001:ChqMtrtyDt 0 (1)
FrmsCd pain001:FrmsCd 0 (1)
MemoFld pain001:MemoFld 0 (1)
RgnlClrZone pain001:RgnlClrZone 0 (1)
Collapse Derivation Tree:
