Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: CreditInqRq_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CreditInq.xsd
Abstract
Collapse XSD Schema Diagram:

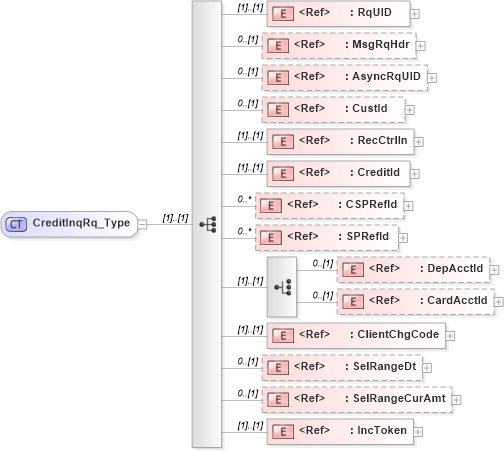

Drilldown into IncToken in schema ifx170_corelib_xsd Drilldown into SelRangeCurAmt in schema ifx170_corelib_xsd Drilldown into SelRangeDt in schema ifx170_corelib_xsd Drilldown into ClientChgCode in schema ifx170_corelib_xsd Drilldown into CardAcctId in schema ifx170_corelib_xsd Drilldown into DepAcctId in schema ifx170_corelib_xsd Drilldown into SPRefId in schema ifx170_corelib_xsd Drilldown into CSPRefId in schema ifx170_corelib_xsd Drilldown into CreditId in schema ifx170_corelib_xsd Drilldown into RecCtrlIn in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsdXSD Diagram of CreditInqRq_Type in schema ifx170_creditinq_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="CreditInqRq_Type">
    <xsd:sequence>
        <xsd:element ref="RqUID" />
        <xsd:element ref="MsgRqHdr" minOccurs="0" />
        <xsd:element ref="AsyncRqUID" minOccurs="0" />
        <xsd:element ref="CustId" minOccurs="0" />
        <xsd:element ref="RecCtrlIn" />
        <xsd:element ref="CreditId" />
        <xsd:element ref="CSPRefId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SPRefId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:choice>
            <xsd:element ref="DepAcctId" minOccurs="0" />
            <xsd:element ref="CardAcctId" minOccurs="0" />
        </xsd:choice>
        <xsd:element ref="ClientChgCode" />
        <xsd:element ref="SelRangeDt" minOccurs="0" />
        <xsd:element ref="SelRangeCurAmt" minOccurs="0" />
        <xsd:element ref="IncToken" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
RecCtrlIn ifx:RecCtrlIn (1) (1)
CreditId ifx:CreditId (1) (1)
CSPRefId ifx:CSPRefId 0 unbounded
SPRefId ifx:SPRefId 0 unbounded
DepAcctId ifx:DepAcctId 0 (1)
CardAcctId ifx:CardAcctId 0 (1)
ClientChgCode ifx:ClientChgCode (1) (1)
SelRangeDt ifx:SelRangeDt 0 (1)
SelRangeCurAmt ifx:SelRangeCurAmt 0 (1)
IncToken ifx:IncToken (1) (1)
Collapse Derivation Tree:
Collapse References:
ifx:CreditInqRq
