Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: CreditMediaChkInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib No Plus.xsd
Abstract

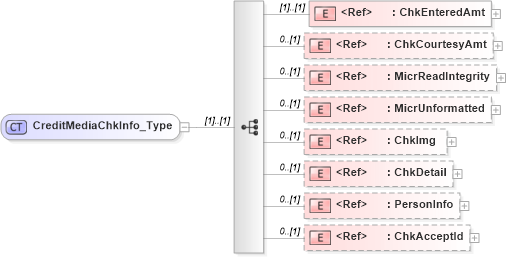

Collapse XSD Schema Diagram:
Drilldown into ChkAcceptId in schema ifx170_corelib no plus_xsd Drilldown into PersonInfo in schema ifx170_corelib no plus_xsd Drilldown into ChkDetail in schema ifx170_corelib no plus_xsd Drilldown into ChkImg in schema ifx170_corelib no plus_xsd Drilldown into MicrUnformatted in schema ifx170_corelib no plus_xsd Drilldown into MicrReadIntegrity in schema ifx170_corelib no plus_xsd Drilldown into ChkCourtesyAmt in schema ifx170_corelib no plus_xsd Drilldown into ChkEnteredAmt in schema ifx170_corelib no plus_xsdXSD Diagram of CreditMediaChkInfo_Type in schema ifx170_corelib no plus_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="CreditMediaChkInfo_Type">
    <xsd:sequence>
        <xsd:element ref="ChkEnteredAmt" />
        <xsd:element ref="ChkCourtesyAmt" minOccurs="0" />
        <xsd:element ref="MicrReadIntegrity" minOccurs="0" />
        <xsd:element ref="MicrUnformatted" minOccurs="0" />
        <xsd:element ref="ChkImg" minOccurs="0" />
        <xsd:element ref="ChkDetail" minOccurs="0" />
        <xsd:element ref="PersonInfo" minOccurs="0" />
        <xsd:element ref="ChkAcceptId" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ChkEnteredAmt ifx:ChkEnteredAmt (1) (1)
ChkCourtesyAmt ifx:ChkCourtesyAmt 0 (1)
MicrReadIntegrity ifx:MicrReadIntegrity 0 (1)
MicrUnformatted ifx:MicrUnformatted 0 (1)
ChkImg ifx:ChkImg 0 (1)
ChkDetail ifx:ChkDetail 0 (1)
PersonInfo ifx:PersonInfo 0 (1)
ChkAcceptId ifx:ChkAcceptId 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:CreditMediaChkInfo
