Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: CustInqRs_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CustInq.xsd
Abstract
Collapse XSD Schema Diagram:

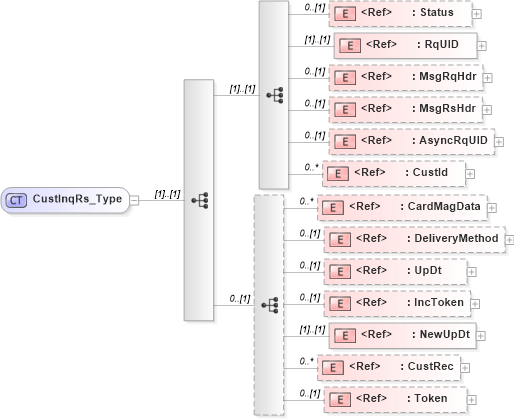

Drilldown into Token in schema ifx170_corelib_xsd Drilldown into CustRec in schema ifx170_custlib_xsd Drilldown into NewUpDt in schema ifx170_corelib_xsd Drilldown into IncToken in schema ifx170_corelib_xsd Drilldown into UpDt in schema ifx170_corelib_xsd Drilldown into DeliveryMethod in schema ifx170_corelib_xsd Drilldown into CardMagData in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRsHdr in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsdXSD Diagram of CustInqRs_Type in schema ifx170_custinq_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="CustInqRs_Type">
    <xsd:sequence>
        <xsd:sequence>
            <xsd:element ref="Status" minOccurs="0" />
            <xsd:element ref="RqUID" />
            <xsd:element ref="MsgRqHdr" minOccurs="0" />
            <xsd:element ref="MsgRsHdr" minOccurs="0" />
            <xsd:element ref="AsyncRqUID" minOccurs="0" />
            <xsd:element ref="CustId" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:sequence minOccurs="0">
            <xsd:element ref="CardMagData" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="DeliveryMethod" minOccurs="0" />
            <xsd:element ref="UpDt" minOccurs="0" />
            <xsd:element ref="IncToken" minOccurs="0" />
            <xsd:element ref="NewUpDt" />
            <xsd:element ref="CustRec" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="Token" minOccurs="0" />
        </xsd:sequence>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
MsgRsHdr ifx:MsgRsHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 unbounded
CardMagData ifx:CardMagData 0 unbounded
DeliveryMethod ifx:DeliveryMethod 0 (1)
UpDt ifx:UpDt 0 (1)
IncToken ifx:IncToken 0 (1)
NewUpDt ifx:NewUpDt (1) (1)
CustRec ifx:CustRec 0 unbounded
Token ifx:Token 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:CustInqRs
