Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: CustNameAddr_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib.xsd
Abstract

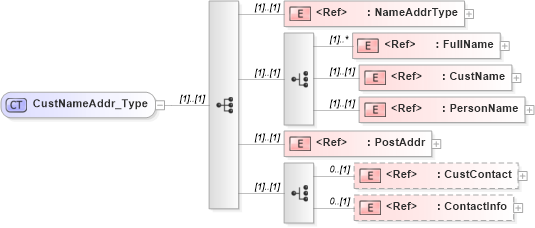

Collapse XSD Schema Diagram:
Drilldown into ContactInfo in schema ifx170_corelib_xsd Drilldown into CustContact in schema ifx170_corelib_xsd Drilldown into PostAddr in schema ifx170_corelib_xsd Drilldown into PersonName in schema ifx170_corelib_xsd Drilldown into CustName in schema ifx170_corelib_xsd Drilldown into FullName in schema ifx170_corelib_xsd Drilldown into NameAddrType in schema ifx170_corelib_xsdXSD Diagram of CustNameAddr_Type in schema ifx170_corelib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="CustNameAddr_Type">
    <xsd:sequence>
        <xsd:element ref="NameAddrType" />
        <xsd:choice>
            <xsd:element ref="FullName" maxOccurs="unbounded" />
            <xsd:element ref="CustName" />
            <xsd:element ref="PersonName" />
        </xsd:choice>
        <xsd:element ref="PostAddr" />
        <xsd:choice>
            <xsd:element ref="CustContact" minOccurs="0" />
            <xsd:element ref="ContactInfo" minOccurs="0" />
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NameAddrType ifx:NameAddrType (1) (1)
FullName ifx:FullName (1) unbounded
CustName ifx:CustName (1) (1)
PersonName ifx:PersonName (1) (1)
PostAddr ifx:PostAddr (1) (1)
CustContact ifx:CustContact 0 (1)
ContactInfo ifx:ContactInfo 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:CustNameAddr
