Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: CustPayeeInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib.xsd
Abstract

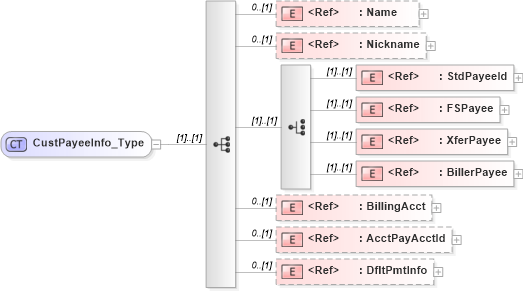

Collapse XSD Schema Diagram:
Drilldown into DfltPmtInfo in schema ifx170_corelib_xsd Drilldown into AcctPayAcctId in schema ifx170_corelib_xsd Drilldown into BillingAcct in schema ifx170_corelib_xsd Drilldown into BillerPayee in schema ifx170_corelib_xsd Drilldown into XferPayee in schema ifx170_corelib_xsd Drilldown into FSPayee in schema ifx170_corelib_xsd Drilldown into StdPayeeId in schema ifx170_corelib_xsd Drilldown into Nickname in schema ifx170_corelib_xsd Drilldown into Name in schema ifx170_corelib_xsdXSD Diagram of CustPayeeInfo_Type in schema ifx170_corelib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="CustPayeeInfo_Type">
    <xsd:sequence>
        <xsd:element ref="Name" minOccurs="0" />
        <xsd:element ref="Nickname" minOccurs="0" />
        <xsd:choice>
            <xsd:element ref="StdPayeeId" />
            <xsd:element ref="FSPayee" />
            <xsd:element ref="XferPayee" />
            <xsd:element ref="BillerPayee" />
        </xsd:choice>
        <xsd:element ref="BillingAcct" minOccurs="0" />
        <xsd:element ref="AcctPayAcctId" minOccurs="0" />
        <xsd:element ref="DfltPmtInfo" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name ifx:Name 0 (1)
Nickname ifx:Nickname 0 (1)
StdPayeeId ifx:StdPayeeId (1) (1)
FSPayee ifx:FSPayee (1) (1)
XferPayee ifx:XferPayee (1) (1)
BillerPayee ifx:BillerPayee (1) (1)
BillingAcct ifx:BillingAcct 0 (1)
AcctPayAcctId ifx:AcctPayAcctId 0 (1)
DfltPmtInfo ifx:DfltPmtInfo 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:CustPayeeInfo
