Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: DebitAuthInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_DebitLib.xsd
Abstract

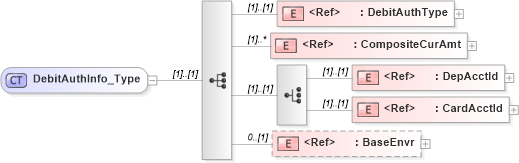

Collapse XSD Schema Diagram:
Drilldown into BaseEnvr in schema ifx170_corelib_xsd Drilldown into CardAcctId in schema ifx170_corelib_xsd Drilldown into DepAcctId in schema ifx170_corelib_xsd Drilldown into CompositeCurAmt in schema ifx170_corelib_xsd Drilldown into DebitAuthType in schema ifx170_debitlib_xsdXSD Diagram of DebitAuthInfo_Type in schema ifx170_debitlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="DebitAuthInfo_Type">
    <xsd:sequence>
        <xsd:element ref="DebitAuthType" />
        <xsd:element ref="CompositeCurAmt" maxOccurs="unbounded" />
        <xsd:choice>
            <xsd:element ref="DepAcctId" />
            <xsd:element ref="CardAcctId" />
        </xsd:choice>
        <xsd:element ref="BaseEnvr" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DebitAuthType ifx:DebitAuthType (1) (1)
CompositeCurAmt ifx:CompositeCurAmt (1) unbounded
DepAcctId ifx:DepAcctId (1) (1)
CardAcctId ifx:CardAcctId (1) (1)
BaseEnvr ifx:BaseEnvr 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:DebitAuthInfo
