Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: DebitAuthStatus_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_DebitLib.xsd
Abstract

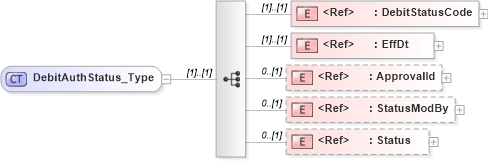

Collapse XSD Schema Diagram:
Drilldown into Status in schema ifx170_corelib_xsd Drilldown into StatusModBy in schema ifx170_corelib_xsd Drilldown into ApprovalId in schema ifx170_corelib_xsd Drilldown into EffDt in schema ifx170_corelib_xsd Drilldown into DebitStatusCode in schema ifx170_debitlib_xsdXSD Diagram of DebitAuthStatus_Type in schema ifx170_debitlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="DebitAuthStatus_Type">
    <xsd:sequence>
        <xsd:element ref="DebitStatusCode" />
        <xsd:element ref="EffDt" />
        <xsd:element ref="ApprovalId" minOccurs="0" />
        <xsd:element ref="StatusModBy" minOccurs="0" />
        <xsd:element ref="Status" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DebitStatusCode ifx:DebitStatusCode (1) (1)
EffDt ifx:EffDt (1) (1)
ApprovalId ifx:ApprovalId 0 (1)
StatusModBy ifx:StatusModBy 0 (1)
Status ifx:Status 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:DebitAuthStatus
