Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: DebitCanRq_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_DebitCan.xsd
Abstract

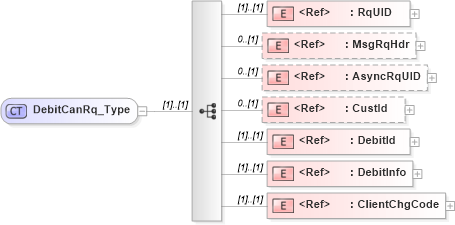

Collapse XSD Schema Diagram:
Drilldown into ClientChgCode in schema ifx170_corelib_xsd Drilldown into DebitInfo in schema ifx170_debitlib_xsd Drilldown into DebitId in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsdXSD Diagram of DebitCanRq_Type in schema ifx170_debitcan_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="DebitCanRq_Type">
    <xsd:sequence>
        <xsd:element ref="RqUID" />
        <xsd:element ref="MsgRqHdr" minOccurs="0" />
        <xsd:element ref="AsyncRqUID" minOccurs="0" />
        <xsd:element ref="CustId" minOccurs="0" />
        <xsd:element ref="DebitId" />
        <xsd:element ref="DebitInfo" />
        <xsd:element ref="ClientChgCode" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
DebitId ifx:DebitId (1) (1)
DebitInfo ifx:DebitInfo (1) (1)
ClientChgCode ifx:ClientChgCode (1) (1)
Collapse Derivation Tree:
Collapse References:
ifx:DebitCanRq
