Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: DepAcctStmtInqRs_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_DepAcctStmtInq.xsd
Abstract

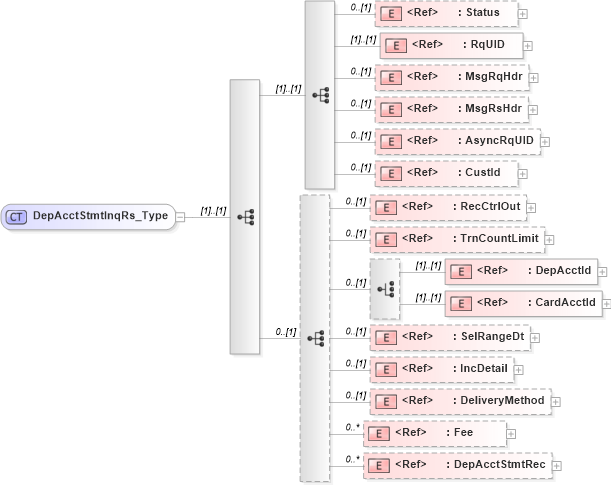

Collapse XSD Schema Diagram:
Drilldown into DepAcctStmtRec in schema ifx170_acctlib_xsd Drilldown into Fee in schema ifx170_corelib_xsd Drilldown into DeliveryMethod in schema ifx170_corelib_xsd Drilldown into IncDetail in schema ifx170_corelib_xsd Drilldown into SelRangeDt in schema ifx170_corelib_xsd Drilldown into CardAcctId in schema ifx170_corelib_xsd Drilldown into DepAcctId in schema ifx170_corelib_xsd Drilldown into TrnCountLimit in schema ifx170_corelib_xsd Drilldown into RecCtrlOut in schema ifx170_corelib_xsd Drilldown into CustId in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRsHdr in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Status in schema ifx170_corelib_xsdXSD Diagram of DepAcctStmtInqRs_Type in schema ifx170_depacctstmtinq_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="DepAcctStmtInqRs_Type">
    <xsd:sequence>
        <xsd:sequence>
            <xsd:element ref="Status" minOccurs="0" />
            <xsd:element ref="RqUID" />
            <xsd:element ref="MsgRqHdr" minOccurs="0" />
            <xsd:element ref="MsgRsHdr" minOccurs="0" />
            <xsd:element ref="AsyncRqUID" minOccurs="0" />
            <xsd:element ref="CustId" minOccurs="0" />
        </xsd:sequence>
        <xsd:sequence minOccurs="0">
            <xsd:element ref="RecCtrlOut" minOccurs="0" />
            <xsd:element ref="TrnCountLimit" minOccurs="0" />
            <xsd:choice minOccurs="0">
                <xsd:element ref="DepAcctId" />
                <xsd:element ref="CardAcctId" />
            </xsd:choice>
            <xsd:element ref="SelRangeDt" minOccurs="0" />
            <xsd:element ref="IncDetail" minOccurs="0" />
            <xsd:element ref="DeliveryMethod" minOccurs="0" />
            <xsd:element ref="Fee" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="DepAcctStmtRec" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status ifx:Status 0 (1)
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
MsgRsHdr ifx:MsgRsHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
CustId ifx:CustId 0 (1)
RecCtrlOut ifx:RecCtrlOut 0 (1)
TrnCountLimit ifx:TrnCountLimit 0 (1)
DepAcctId ifx:DepAcctId (1) (1)
CardAcctId ifx:CardAcctId (1) (1)
SelRangeDt ifx:SelRangeDt 0 (1)
IncDetail ifx:IncDetail 0 (1)
DeliveryMethod ifx:DeliveryMethod 0 (1)
Fee ifx:Fee 0 unbounded
DepAcctStmtRec ifx:DepAcctStmtRec 0 unbounded
Collapse Derivation Tree:
Collapse References:
ifx:DepAcctStmtInqRs
