Definition Type: ComplexType
Name: DevCimBin_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_DevLib.xsd
Abstract

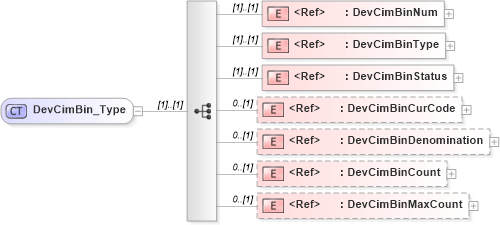

Collapse XSD Schema Diagram:
Drilldown into DevCimBinMaxCount in schema ifx170_devlib_xsd Drilldown into DevCimBinCount in schema ifx170_devlib_xsd Drilldown into DevCimBinDenomination in schema ifx170_devlib_xsd Drilldown into DevCimBinCurCode in schema ifx170_devlib_xsd Drilldown into DevCimBinStatus in schema ifx170_devlib_xsd Drilldown into DevCimBinType in schema ifx170_devlib_xsd Drilldown into DevCimBinNum in schema ifx170_devlib_xsdXSD Diagram of DevCimBin_Type in schema ifx170_devlib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="DevCimBin_Type">
    <xsd:sequence>
        <xsd:element ref="DevCimBinNum" />
        <xsd:element ref="DevCimBinType" />
        <xsd:element ref="DevCimBinStatus" />
        <xsd:element ref="DevCimBinCurCode" minOccurs="0" />
        <xsd:element ref="DevCimBinDenomination" minOccurs="0" />
        <xsd:element ref="DevCimBinCount" minOccurs="0" />
        <xsd:element ref="DevCimBinMaxCount" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DevCimBinNum ifx:DevCimBinNum (1) (1)
DevCimBinType ifx:DevCimBinType (1) (1)
DevCimBinStatus ifx:DevCimBinStatus (1) (1)
DevCimBinCurCode ifx:DevCimBinCurCode 0 (1)
DevCimBinDenomination ifx:DevCimBinDenomination 0 (1)
DevCimBinCount ifx:DevCimBinCount 0 (1)
DevCimBinMaxCount ifx:DevCimBinMaxCount 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:DevCimBin
