Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: Discount_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib No Plus.xsd
Abstract

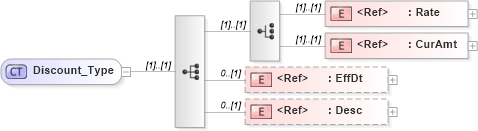

Collapse XSD Schema Diagram:
Drilldown into Desc in schema ifx170_corelib no plus_xsd Drilldown into EffDt in schema ifx170_corelib no plus_xsd Drilldown into CurAmt in schema ifx170_corelib no plus_xsd Drilldown into Rate in schema ifx170_corelib no plus_xsdXSD Diagram of Discount_Type in schema ifx170_corelib no plus_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="Discount_Type">
    <xsd:sequence>
        <xsd:choice>
            <xsd:element ref="Rate" />
            <xsd:element ref="CurAmt" />
        </xsd:choice>
        <xsd:element ref="EffDt" minOccurs="0" />
        <xsd:element ref="Desc" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Rate ifx:Rate (1) (1)
CurAmt ifx:CurAmt (1) (1)
EffDt ifx:EffDt 0 (1)
Desc ifx:Desc 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:Discount
