Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: EnrollProf_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_SvcProfLib.xsd
Abstract

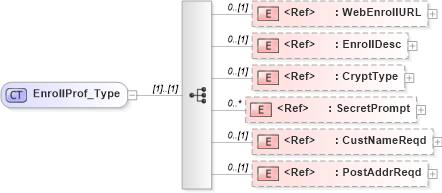

Collapse XSD Schema Diagram:
Drilldown into PostAddrReqd in schema ifx170_corelib_xsd Drilldown into CustNameReqd in schema ifx170_corelib_xsd Drilldown into SecretPrompt in schema ifx170_corelib_xsd Drilldown into CryptType in schema ifx170_corelib_xsd Drilldown into EnrollDesc in schema ifx170_corelib_xsd Drilldown into WebEnrollURL in schema ifx170_corelib_xsdXSD Diagram of EnrollProf_Type in schema ifx170_svcproflib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="EnrollProf_Type">
    <xsd:sequence>
        <xsd:element ref="WebEnrollURL" minOccurs="0" />
        <xsd:element ref="EnrollDesc" minOccurs="0" />
        <xsd:element ref="CryptType" minOccurs="0" />
        <xsd:element ref="SecretPrompt" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CustNameReqd" minOccurs="0" />
        <xsd:element ref="PostAddrReqd" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
WebEnrollURL ifx:WebEnrollURL 0 (1)
EnrollDesc ifx:EnrollDesc 0 (1)
CryptType ifx:CryptType 0 (1)
SecretPrompt ifx:SecretPrompt 0 unbounded
CustNameReqd ifx:CustNameReqd 0 (1)
PostAddrReqd ifx:PostAddrReqd 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:EnrollProf
