Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: Fee_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib.xsd
Abstract

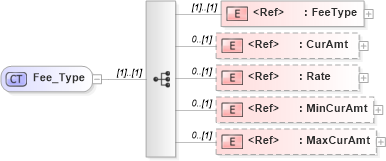

Collapse XSD Schema Diagram:
Drilldown into MaxCurAmt in schema ifx170_corelib_xsd Drilldown into MinCurAmt in schema ifx170_corelib_xsd Drilldown into Rate in schema ifx170_corelib_xsd Drilldown into CurAmt in schema ifx170_corelib_xsd Drilldown into FeeType in schema ifx170_corelib_xsdXSD Diagram of Fee_Type in schema ifx170_corelib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="Fee_Type">
    <xsd:sequence>
        <xsd:element ref="FeeType" />
        <xsd:element ref="CurAmt" minOccurs="0" />
        <xsd:element ref="Rate" minOccurs="0" />
        <xsd:element ref="MinCurAmt" minOccurs="0" />
        <xsd:element ref="MaxCurAmt" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FeeType ifx:FeeType (1) (1)
CurAmt ifx:CurAmt 0 (1)
Rate ifx:Rate 0 (1)
MinCurAmt ifx:MinCurAmt 0 (1)
MaxCurAmt ifx:MaxCurAmt 0 (1)
Collapse Derivation Tree:
Collapse References:
ifx:Fee
