Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: FinancialInstitutionIdentification1
Namespace: urn:swift:xsd:$pain.002.001.01
Containing Schema: $pain.002.001.01.xsd
Abstract

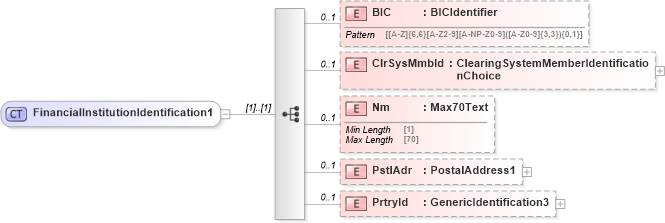

Collapse XSD Schema Diagram:
Drilldown into PrtryId in schema $pain_002_001_01_xsd Drilldown into PstlAdr in schema $pain_002_001_01_xsd Drilldown into Nm in schema $pain_002_001_01_xsd Drilldown into ClrSysMmbId in schema $pain_002_001_01_xsd Drilldown into BIC in schema $pain_002_001_01_xsdXSD Diagram of FinancialInstitutionIdentification1 in schema $pain_002_001_01_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xs:complexType name="FinancialInstitutionIdentification1">
    <xs:sequence>
        <xs:element name="BIC" type="BICIdentifier" minOccurs="0" maxOccurs="1" />
        <xs:element name="ClrSysMmbId" type="ClearingSystemMemberIdentificationChoice" minOccurs="0" maxOccurs="1" />
        <xs:element name="Nm" type="Max70Text" minOccurs="0" maxOccurs="1" />
        <xs:element name="PstlAdr" type="PostalAddress1" minOccurs="0" maxOccurs="1" />
        <xs:element name="PrtryId" type="GenericIdentification3" minOccurs="0" maxOccurs="1" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BIC pain002:BIC 0 1
ClrSysMmbId pain002:ClrSysMmbId 0 1
Nm pain002:Nm 0 1
PstlAdr pain002:PstlAdr 0 1
PrtryId pain002:PrtryId 0 1
Collapse Derivation Tree:
Collapse References:
pain002:FinInstnId
