Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: GeneralInformation2
Namespace: urn:swift:xsd:$pain.004.001.01
Containing Schema: $pain.004.001.01.xsd
Abstract

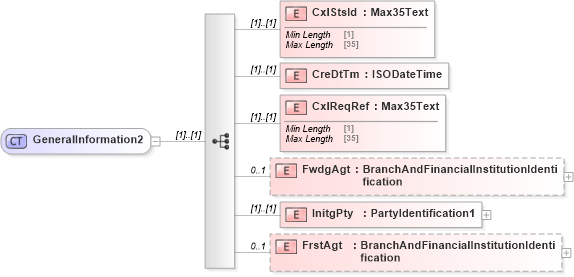

Collapse XSD Schema Diagram:
Drilldown into FrstAgt in schema $pain_004_001_01_xsd Drilldown into InitgPty in schema $pain_004_001_01_xsd Drilldown into FwdgAgt in schema $pain_004_001_01_xsd Drilldown into CxlReqRef in schema $pain_004_001_01_xsd Drilldown into CreDtTm in schema $pain_004_001_01_xsd Drilldown into CxlStsId in schema $pain_004_001_01_xsdXSD Diagram of GeneralInformation2 in schema $pain_004_001_01_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xs:complexType name="GeneralInformation2">
    <xs:sequence>
        <xs:element name="CxlStsId" type="Max35Text" />
        <xs:element name="CreDtTm" type="ISODateTime" />
        <xs:element name="CxlReqRef" type="Max35Text" />
        <xs:element name="FwdgAgt" type="BranchAndFinancialInstitutionIdentification" minOccurs="0" maxOccurs="1" />
        <xs:element name="InitgPty" type="PartyIdentification1" />
        <xs:element name="FrstAgt" type="BranchAndFinancialInstitutionIdentification" minOccurs="0" maxOccurs="1" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CxlStsId pain004:CxlStsId (1) (1)
CreDtTm pain004:CreDtTm (1) (1)
CxlReqRef pain004:CxlReqRef (1) (1)
FwdgAgt pain004:FwdgAgt 0 1
InitgPty pain004:InitgPty (1) (1)
FrstAgt pain004:FrstAgt 0 1
Collapse Derivation Tree:
Collapse References:
pain004:GnlInf
