Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: GroupInformation1
Namespace: urn:swift:xsd:$pain.001.001.01
Containing Schema: $pain.001.001.01.xsd
Abstract

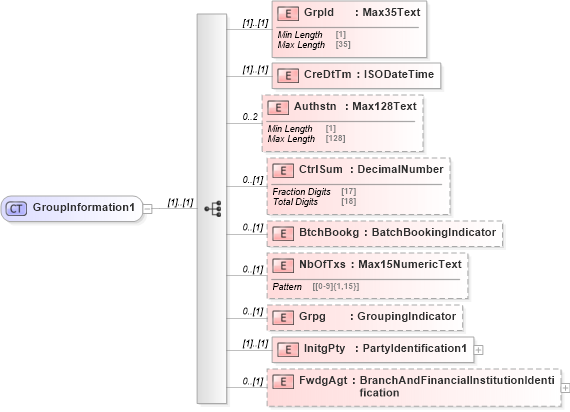

Collapse XSD Schema Diagram:
Drilldown into FwdgAgt in schema $pain_001_001_01_xsd Drilldown into InitgPty in schema $pain_001_001_01_xsd Drilldown into Grpg in schema $pain_001_001_01_xsd Drilldown into NbOfTxs in schema $pain_001_001_01_xsd Drilldown into BtchBookg in schema $pain_001_001_01_xsd Drilldown into CtrlSum in schema $pain_001_001_01_xsd Drilldown into Authstn in schema $pain_001_001_01_xsd Drilldown into CreDtTm in schema $pain_001_001_01_xsd Drilldown into GrpId in schema $pain_001_001_01_xsdXSD Diagram of GroupInformation1 in schema $pain_001_001_01_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xs:complexType name="GroupInformation1">
    <xs:sequence>
        <xs:element name="GrpId" type="Max35Text" />
        <xs:element name="CreDtTm" type="ISODateTime" />
        <xs:element name="Authstn" type="Max128Text" minOccurs="0" maxOccurs="2" />
        <xs:element name="CtrlSum" type="DecimalNumber" minOccurs="0" />
        <xs:element name="BtchBookg" type="BatchBookingIndicator" minOccurs="0" />
        <xs:element name="NbOfTxs" type="Max15NumericText" minOccurs="0" />
        <xs:element name="Grpg" type="GroupingIndicator" minOccurs="0" />
        <xs:element name="InitgPty" type="PartyIdentification1" />
        <xs:element name="FwdgAgt" type="BranchAndFinancialInstitutionIdentification" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GrpId pain001:GrpId (1) (1)
CreDtTm pain001:CreDtTm (1) (1)
Authstn pain001:Authstn 0 2
CtrlSum pain001:CtrlSum 0 (1)
BtchBookg pain001:BtchBookg 0 (1)
NbOfTxs pain001:NbOfTxs 0 (1)
Grpg pain001:Grpg 0 (1)
InitgPty pain001:InitgPty (1) (1)
FwdgAgt pain001:FwdgAgt 0 (1)
Collapse Derivation Tree:
Collapse References:
pain001:GrpHdr
