Documentation for Interactive Financial eXchange (IFX)
Definition Type: ComplexType
Name: InvoiceInfo_Type
Namespace: urn:ifxforum-org:XSD:1
Containing Schema: IFX170_CoreLib.xsd
Abstract

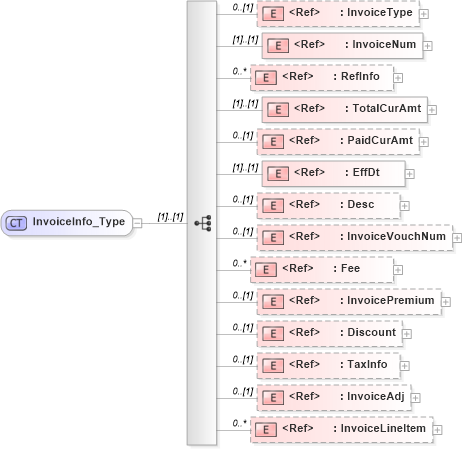

Collapse XSD Schema Diagram:
Drilldown into InvoiceLineItem in schema ifx170_corelib_xsd Drilldown into InvoiceAdj in schema ifx170_corelib_xsd Drilldown into TaxInfo in schema ifx170_corelib_xsd Drilldown into Discount in schema ifx170_corelib_xsd Drilldown into InvoicePremium in schema ifx170_corelib_xsd Drilldown into Fee in schema ifx170_corelib_xsd Drilldown into InvoiceVouchNum in schema ifx170_corelib_xsd Drilldown into Desc in schema ifx170_corelib_xsd Drilldown into EffDt in schema ifx170_corelib_xsd Drilldown into PaidCurAmt in schema ifx170_corelib_xsd Drilldown into TotalCurAmt in schema ifx170_corelib_xsd Drilldown into RefInfo in schema ifx170_corelib_xsd Drilldown into InvoiceNum in schema ifx170_corelib_xsd Drilldown into InvoiceType in schema ifx170_corelib_xsdXSD Diagram of InvoiceInfo_Type in schema ifx170_corelib_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:complexType name="InvoiceInfo_Type">
    <xsd:sequence>
        <xsd:element ref="InvoiceType" minOccurs="0" />
        <xsd:element ref="InvoiceNum" />
        <xsd:element ref="RefInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="TotalCurAmt" />
        <xsd:element ref="PaidCurAmt" minOccurs="0" />
        <xsd:element ref="EffDt" />
        <xsd:element ref="Desc" minOccurs="0" />
        <xsd:element ref="InvoiceVouchNum" minOccurs="0" />
        <xsd:element ref="Fee" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="InvoicePremium" minOccurs="0" />
        <xsd:element ref="Discount" minOccurs="0" />
        <xsd:element ref="TaxInfo" minOccurs="0" />
        <xsd:element ref="InvoiceAdj" minOccurs="0" />
        <xsd:element ref="InvoiceLineItem" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InvoiceType ifx:InvoiceType 0 (1)
InvoiceNum ifx:InvoiceNum (1) (1)
RefInfo ifx:RefInfo 0 unbounded
TotalCurAmt ifx:TotalCurAmt (1) (1)
PaidCurAmt ifx:PaidCurAmt 0 (1)
EffDt ifx:EffDt (1) (1)
Desc ifx:Desc 0 (1)
InvoiceVouchNum ifx:InvoiceVouchNum 0 (1)
Fee ifx:Fee 0 unbounded
InvoicePremium ifx:InvoicePremium 0 (1)
Discount ifx:Discount 0 (1)
TaxInfo ifx:TaxInfo 0 (1)
InvoiceAdj ifx:InvoiceAdj 0 (1)
InvoiceLineItem ifx:InvoiceLineItem 0 unbounded
Collapse Derivation Tree:
Collapse References:
ifx:InvoiceInfo
