Documentation for Interactive Financial eXchange (IFX)
Definition Type: Element
Name: MediaSvcRq
Namespace: urn:ifxforum-org:XSD:1
Type: ifx:MediaSvcRq_Type
Containing Schema: IFX170_MediaSvc.xsd
Abstract

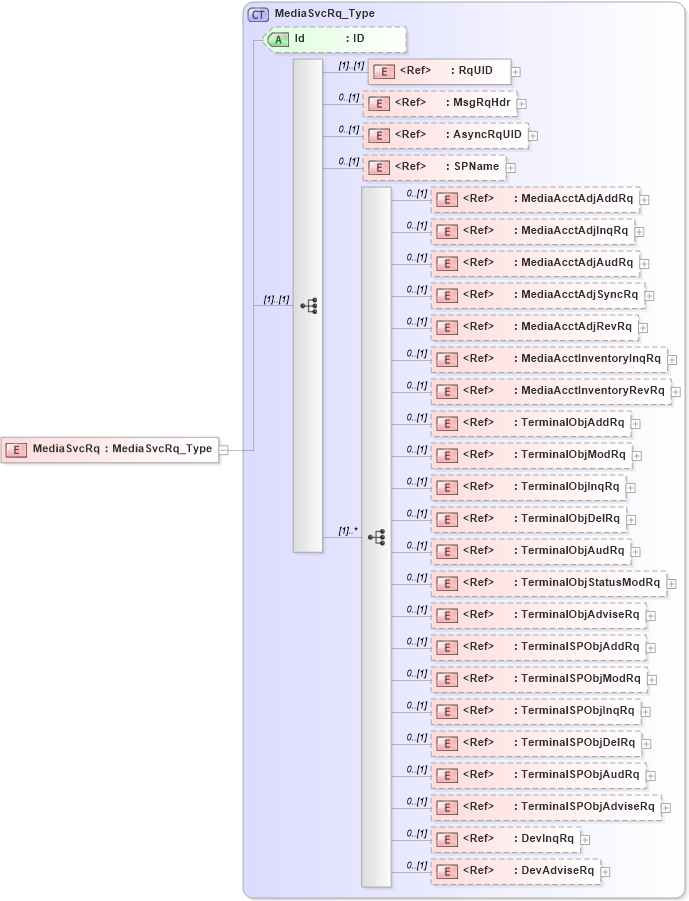

Collapse XSD Schema Diagram:
Drilldown into DevAdviseRq in schema ifx170_devadvise_xsd Drilldown into DevInqRq in schema ifx170_devinq_xsd Drilldown into TerminalSPObjAdviseRq in schema ifx170_terminalspobjadvise_xsd Drilldown into TerminalSPObjAudRq in schema ifx170_terminalspobjaud_xsd Drilldown into TerminalSPObjDelRq in schema ifx170_terminalspobjdel_xsd Drilldown into TerminalSPObjInqRq in schema ifx170_terminalspobjinq_xsd Drilldown into TerminalSPObjModRq in schema ifx170_terminalspobjmod_xsd Drilldown into TerminalSPObjAddRq in schema ifx170_terminalspobjadd_xsd Drilldown into TerminalObjAdviseRq in schema ifx170_terminalobjadvise_xsd Drilldown into TerminalObjStatusModRq in schema ifx170_terminalobjstatusmod_xsd Drilldown into TerminalObjAudRq in schema ifx170_terminalobjaud_xsd Drilldown into TerminalObjDelRq in schema ifx170_terminalobjdel_xsd Drilldown into TerminalObjInqRq in schema ifx170_terminalobjinq_xsd Drilldown into TerminalObjModRq in schema ifx170_terminalobjmod_xsd Drilldown into TerminalObjAddRq in schema ifx170_terminalobjadd_xsd Drilldown into MediaAcctInventoryRevRq in schema ifx170_mediaacctinventoryrev_xsd Drilldown into MediaAcctInventoryInqRq in schema ifx170_mediaacctinventoryinq_xsd Drilldown into MediaAcctAdjRevRq in schema ifx170_mediaacctadjrev_xsd Drilldown into MediaAcctAdjSyncRq in schema ifx170_mediaacctadjsync_xsd Drilldown into MediaAcctAdjAudRq in schema ifx170_mediaacctadjaud_xsd Drilldown into MediaAcctAdjInqRq in schema ifx170_mediaacctadjinq_xsd Drilldown into MediaAcctAdjAddRq in schema ifx170_mediaacctadjadd_xsd Drilldown into SPName in schema ifx170_corelib_xsd Drilldown into AsyncRqUID in schema ifx170_corelib_xsd Drilldown into MsgRqHdr in schema ifx170_corelib_xsd Drilldown into RqUID in schema ifx170_corelib_xsd Drilldown into Id in schema ifx170_mediasvc_xsd Drilldown into MediaSvcRq_Type in schema ifx170_mediasvc_xsdXSD Diagram of MediaSvcRq in schema ifx170_mediasvc_xsd (Interactive Financial eXchange (IFX))
Collapse XSD Schema Code:
<xsd:element name="MediaSvcRq" type="MediaSvcRq_Type" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID ifx:RqUID (1) (1)
MsgRqHdr ifx:MsgRqHdr 0 (1)
AsyncRqUID ifx:AsyncRqUID 0 (1)
SPName ifx:SPName 0 (1)
MediaAcctAdjAddRq ifx:MediaAcctAdjAddRq 0 (1)
MediaAcctAdjInqRq ifx:MediaAcctAdjInqRq 0 (1)
MediaAcctAdjAudRq ifx:MediaAcctAdjAudRq 0 (1)
MediaAcctAdjSyncRq ifx:MediaAcctAdjSyncRq 0 (1)
MediaAcctAdjRevRq ifx:MediaAcctAdjRevRq 0 (1)
MediaAcctInventoryInqRq ifx:MediaAcctInventoryInqRq 0 (1)
MediaAcctInventoryRevRq ifx:MediaAcctInventoryRevRq 0 (1)
TerminalObjAddRq ifx:TerminalObjAddRq 0 (1)
TerminalObjModRq ifx:TerminalObjModRq 0 (1)
TerminalObjInqRq ifx:TerminalObjInqRq 0 (1)
TerminalObjDelRq ifx:TerminalObjDelRq 0 (1)
TerminalObjAudRq ifx:TerminalObjAudRq 0 (1)
TerminalObjStatusModRq ifx:TerminalObjStatusModRq 0 (1)
TerminalObjAdviseRq ifx:TerminalObjAdviseRq 0 (1)
TerminalSPObjAddRq ifx:TerminalSPObjAddRq 0 (1)
TerminalSPObjModRq ifx:TerminalSPObjModRq 0 (1)
TerminalSPObjInqRq ifx:TerminalSPObjInqRq 0 (1)
TerminalSPObjDelRq ifx:TerminalSPObjDelRq 0 (1)
TerminalSPObjAudRq ifx:TerminalSPObjAudRq 0 (1)
TerminalSPObjAdviseRq ifx:TerminalSPObjAdviseRq 0 (1)
DevInqRq ifx:DevInqRq 0 (1)
DevAdviseRq ifx:DevAdviseRq 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Id ifx:Id (Optional)
Collapse Derivation Tree:
